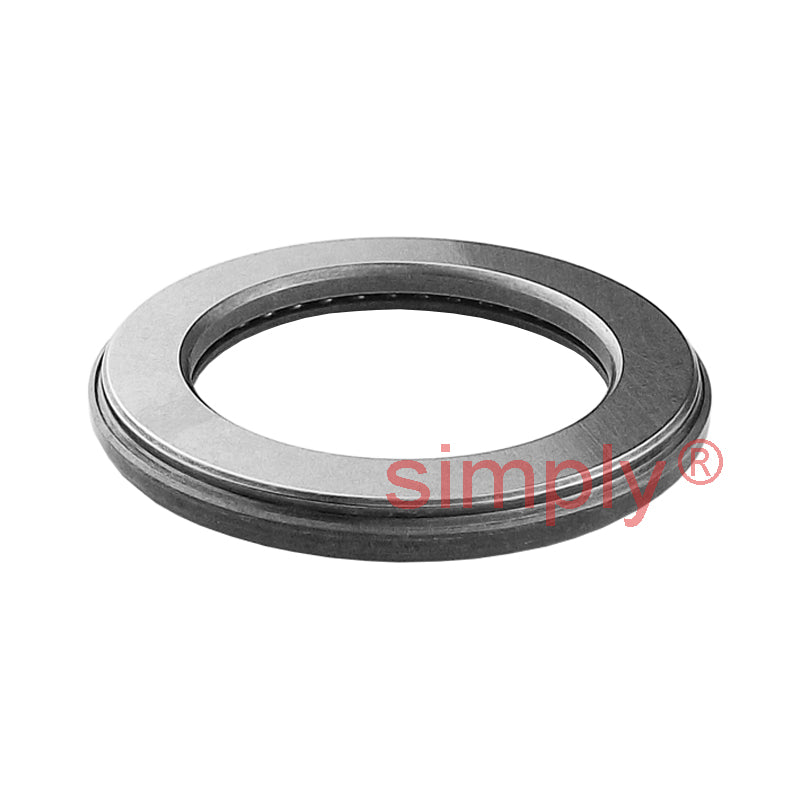

Nadella AX55070 Thick Needle Roller Thrust Bearing 50x70x5mm Allow 2-3 Days
Nadella AX55070 Thick Needle Roller Thrust Bearing 50x70x5mm Allow 2-3 Days
Regular price
€77,36
ex VAT
Regular price
Sale price
€77,36
ex VAT
In stock
Price Break
5+
€76,59
10+
€73,49
20+
€71,94
50+
€69,62
100+
€68,08
500+
€64,21
1000+
€54,15
Couldn't load pickup availability
Description
Description

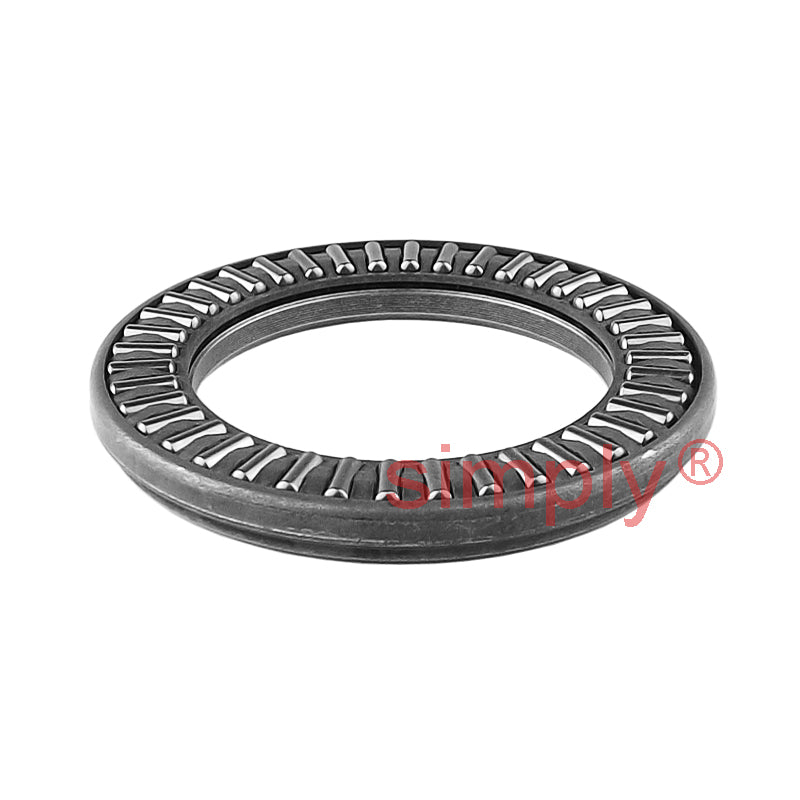

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 50mm |
|---|---|
| D | 70mm |
| B1 | 5mm |
| Eb | 53.3mm |
| Ea | 65.7mm |
| Dynamic load | 22.5 kN |
| Static load | 118 kN |
| Speed rating in oil | 4000 rpm |
| Mass | 0.055 kg |
