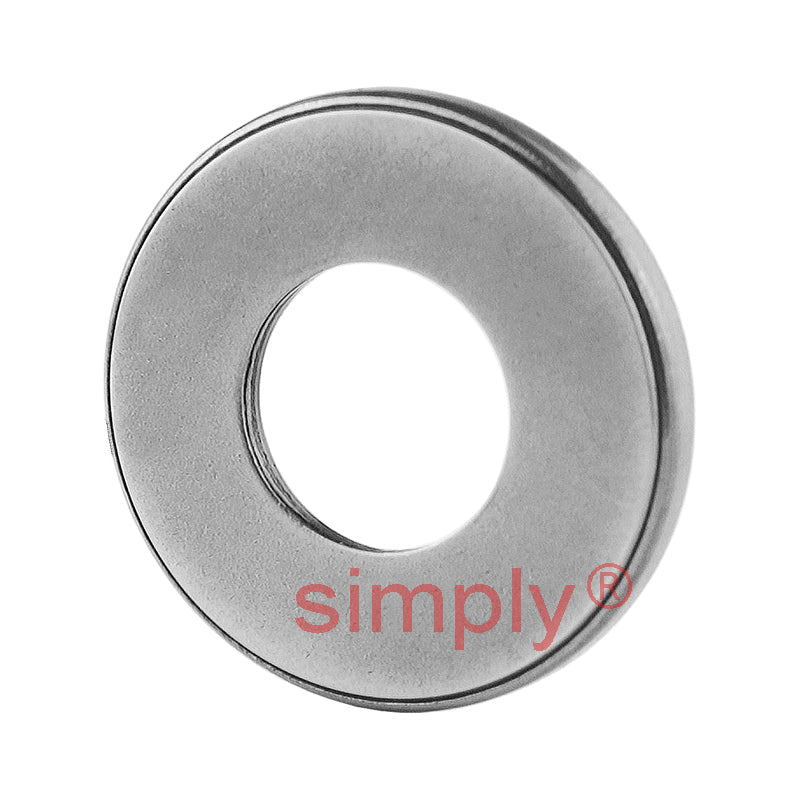

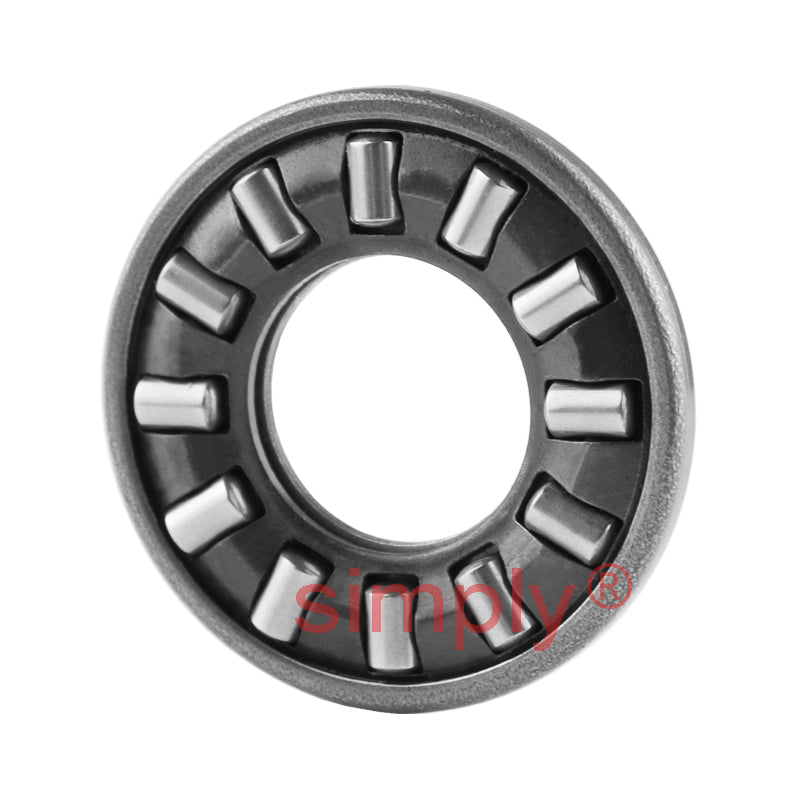

Major Brand AX5578 Thin Needle Roller Thrust Bearing 55x78x2.8mm
Major Brand AX5578 Thin Needle Roller Thrust Bearing 55x78x2.8mm
Regular price
€29,95
ex VAT
Regular price
Sale price
€29,95
ex VAT
In stock
Price Break
10+
€22,58
19+
€21,31
29+
€21,06
39+
€20,80
49+
€20,55
74+
€20,30
99+
€19,03
199+
€18,77
249+
€18,52
499+
€18,27
999+
€17,76
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 78mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 55mm |
|---|---|
| D | 78mm |
| B1 | 2.8mm |
| Eb | 58.4mm |
| Ea | 72.5mm |
| Dynamic load | 28.5 kN |
| Static load | 164 kN |
| Speed rating in oil | 3800 rpm |
| Mass | 0.034 kg |
