SKU: AX614-MB
Major Brand AX614 Thin Needle Roller Thrust Bearing 6x14x2.3mm
Major Brand AX614 Thin Needle Roller Thrust Bearing 6x14x2.3mm
Regular price
€10,33
ex VAT
Regular price
Sale price
€10,33
ex VAT
In stock
Price Break
10+
€9,19
19+
€8,68
29+
€8,57
39+
€8,47
49+
€8,37
74+
€8,26
99+
€7,75
199+
€7,64
249+
€7,54
499+
€7,44
999+
€7,23
Couldn't load pickup availability
Description
Description

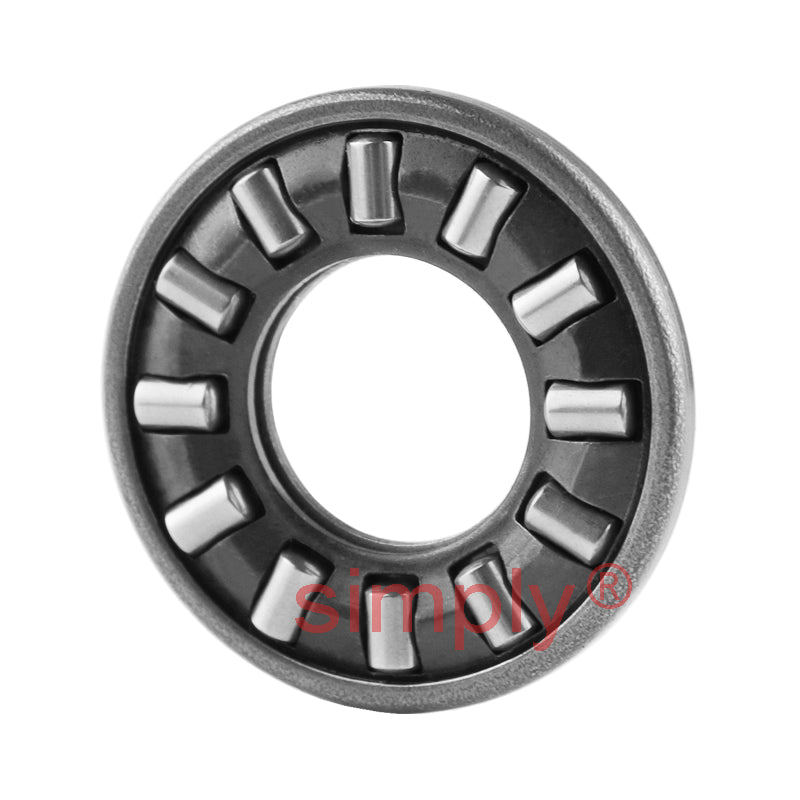

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 14mm
- Width:
- 2.3mm
Technical
Technical
| Dc1 | 6mm |
|---|---|
| D | 14mm |
| B1 | 2.3mm |
| Eb | 7.3mm |
| Ea | 11.9mm |
| Dynamic load | 3.15 kN |
| Static load | 6.35 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.001 kg |
