SKU: AX67095-NADELLA

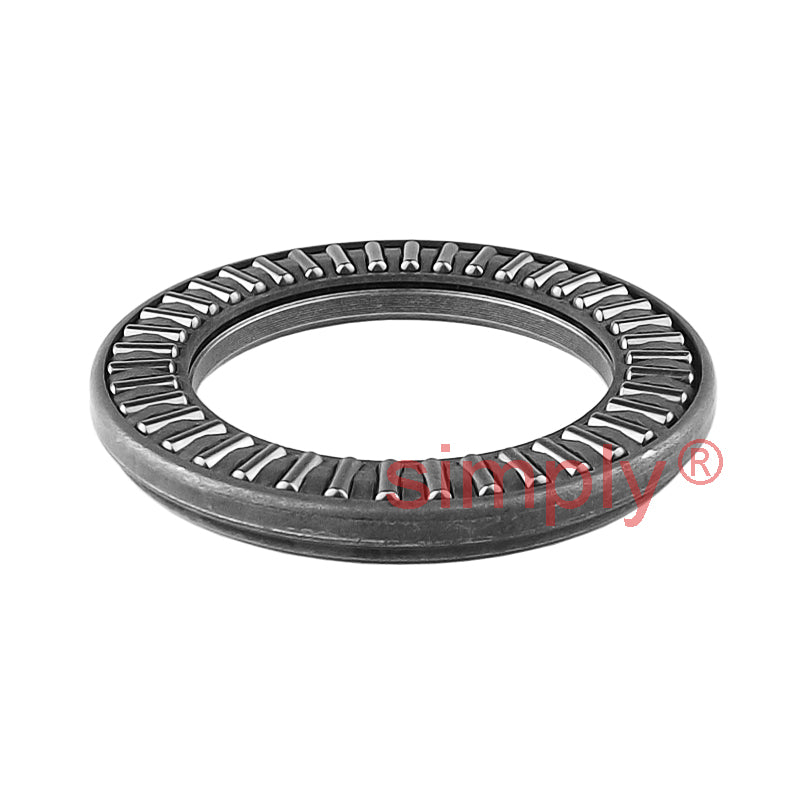

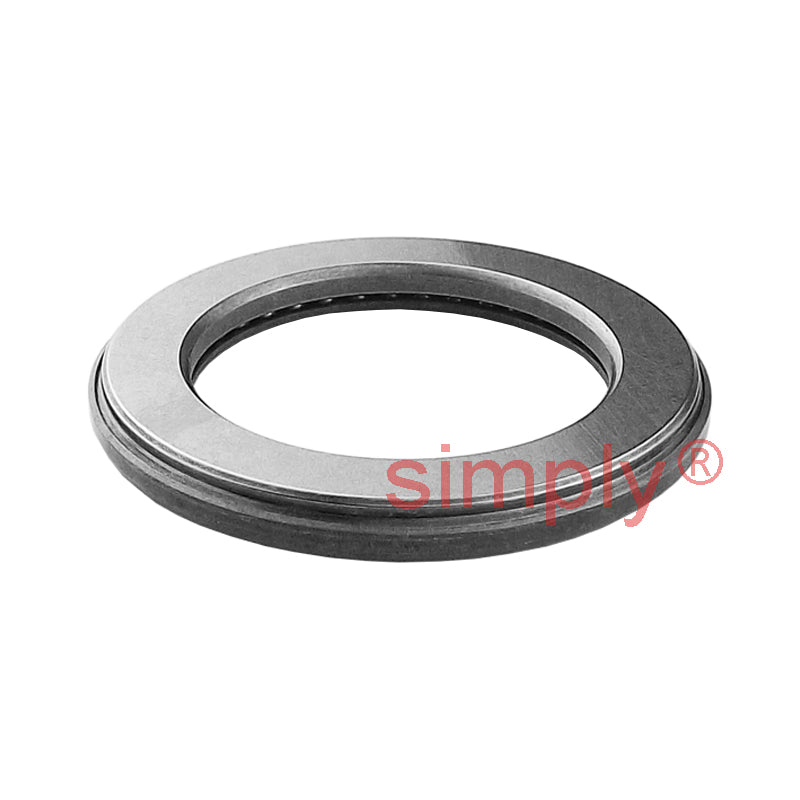

Nadella AX67095 Thick Needle Roller Thrust Bearing 70x95x6mm Allow 2-3 Days
Nadella AX67095 Thick Needle Roller Thrust Bearing 70x95x6mm Allow 2-3 Days
Regular price
€180,61
ex VAT
Regular price
Sale price
€180,61
ex VAT
In stock
Price Break
5+
€178,80
10+
€171,58
20+
€167,97
50+
€162,55
100+
€158,94
500+
€149,91
1000+
€126,43
Couldn't load pickup availability
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 95mm
- Width:
- 6mm
Technical
Technical
| Dc1 | 70mm |
|---|---|
| D | 95mm |
| B1 | 6mm |
| Eb | 73.5mm |
| Ea | 89.2mm |
| Dynamic load | 34.5 kN |
| Static load | 223 kN |
| Speed rating in oil | 3000 rpm |
| Mass | 0.12 kg |
