SKU: AX9100135-MB

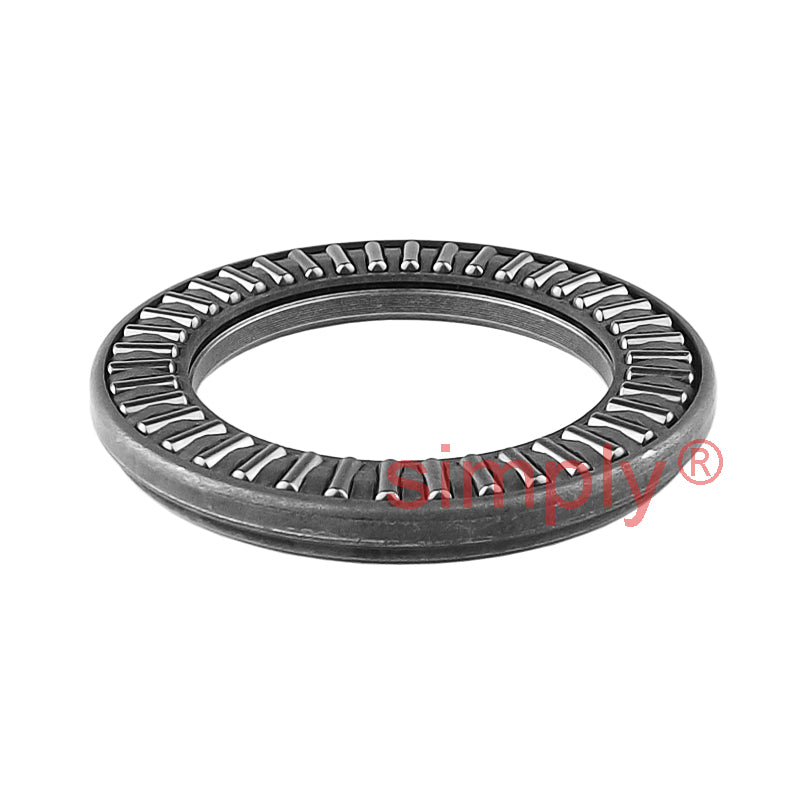

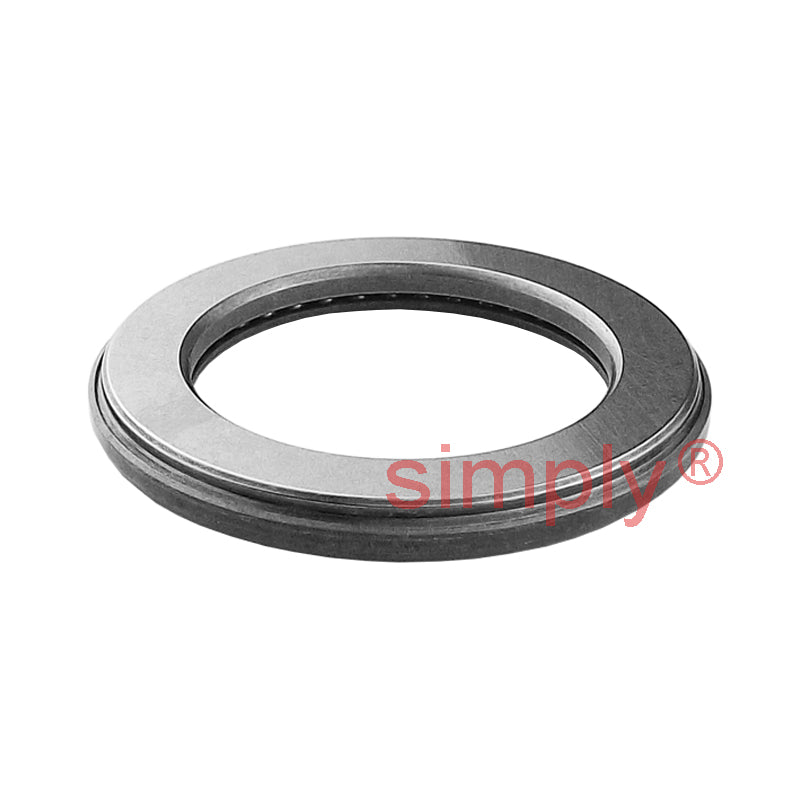

Major Brand AX9100135 Thick Needle Roller Thrust Bearing 100x135x9mm Allow 2-3 Days
Major Brand AX9100135 Thick Needle Roller Thrust Bearing 100x135x9mm Allow 2-3 Days
Regular price
€607,95
ex VAT
Regular price
Sale price
€607,95
ex VAT
In stock
Price Break
10+
€462,29
19+
€436,32
29+
€431,13
39+
€425,93
49+
€420,74
74+
€415,54
99+
€389,57
199+
€384,38
249+
€379,18
499+
€373,99
999+
€363,60
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 9mm
Technical
Technical
| Dc1 | 100mm |
|---|---|
| D | 135mm |
| B1 | 9mm |
| Eb | 104.2mm |
| Ea | 127.3mm |
| Dynamic load | 73 kN |
| Static load | 490 kN |
| Speed rating in oil | 2100 rpm |
| Mass | 0.364 kg |
