SKU: AX9100135-NADELLA

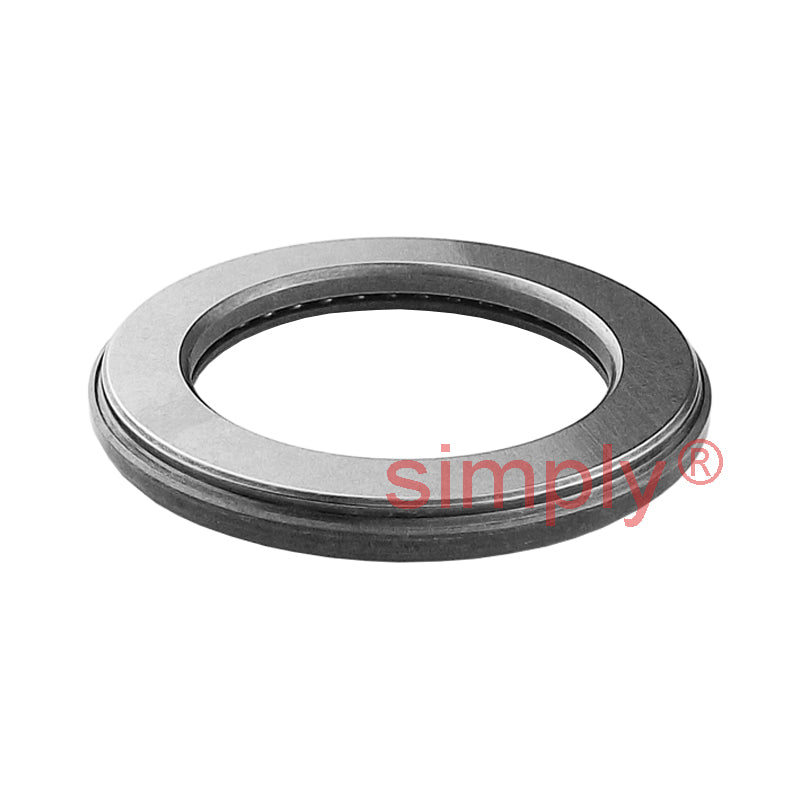

Nadella AX9100135 Thick Needle Roller Thrust Bearing 100x135x9mm Allow 2-3 D
Nadella AX9100135 Thick Needle Roller Thrust Bearing 100x135x9mm Allow 2-3 D
Regular price
€387,13
ex VAT
Regular price
Sale price
€387,13
ex VAT
In stock
Price Break
5+
€383,26
10+
€367,77
20+
€360,03
50+
€348,42
100+
€340,67
500+
€321,32
1000+
€270,99
Couldn't load pickup availability
Description
Description

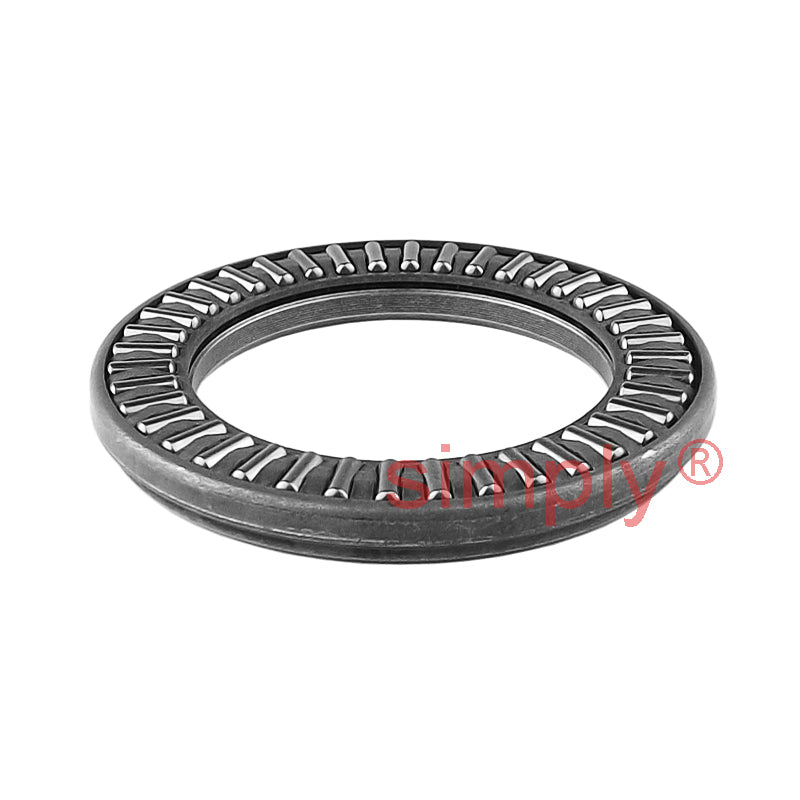

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 9mm
Technical
Technical
| Dc1 | 100mm |
|---|---|
| D | 135mm |
| B1 | 9mm |
| Eb | 104.2mm |
| Ea | 127.3mm |
| Dynamic load | 73 kN |
| Static load | 490 kN |
| Speed rating in oil | 2100 rpm |
| Mass | 0.364 kg |
