SKU: AX9110145-MB

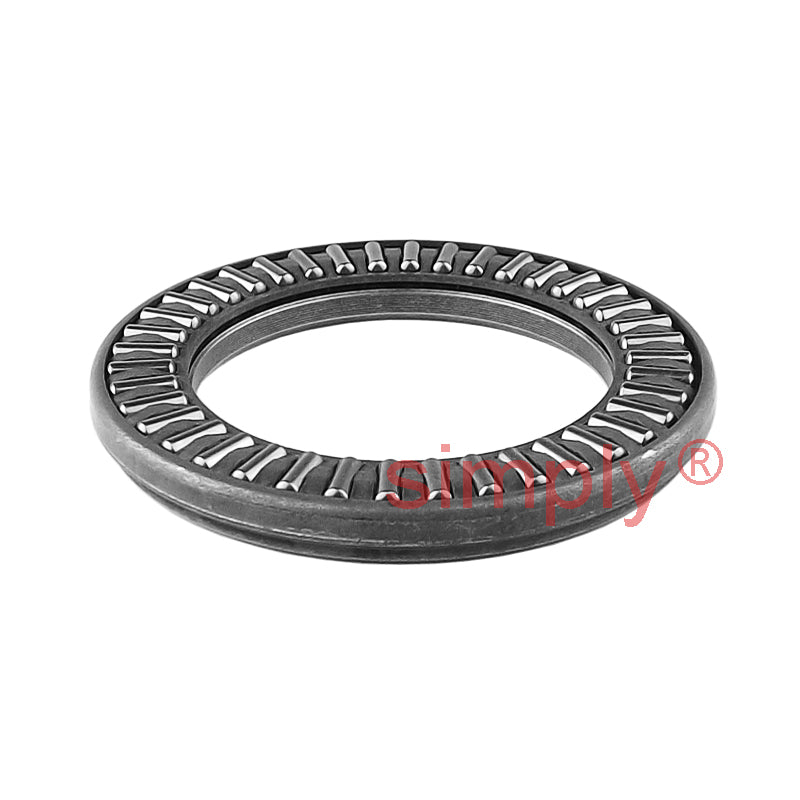

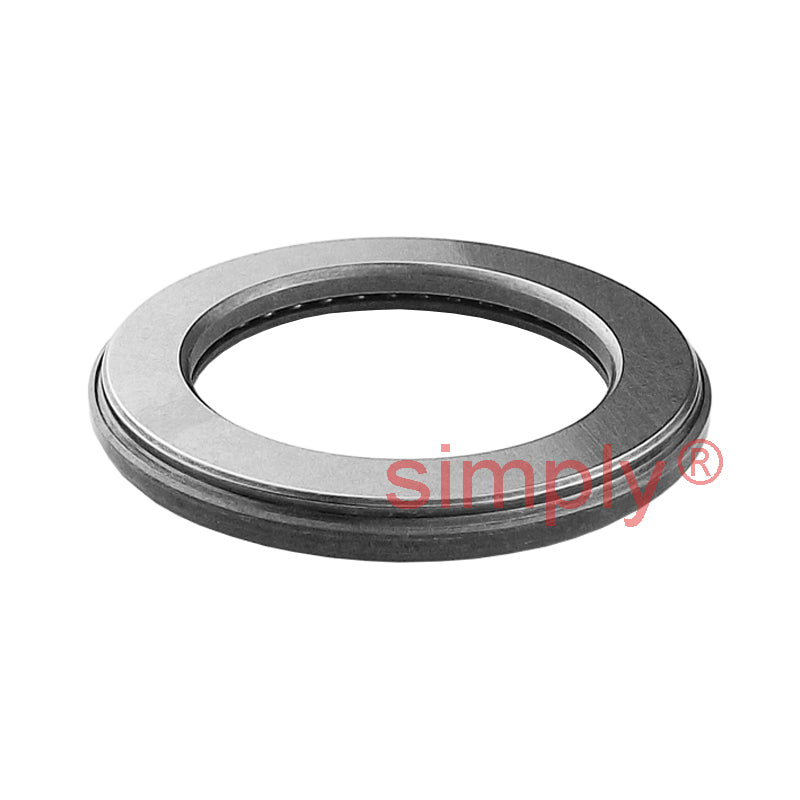

Major Brand AX9110145 Thick Needle Roller Thrust Bearing 110x145x9mm Allow 2-3 Days
Major Brand AX9110145 Thick Needle Roller Thrust Bearing 110x145x9mm Allow 2-3 Days
Regular price
€807,95
ex VAT
Regular price
Sale price
€807,95
ex VAT
In stock
Price Break
10+
€615,28
19+
€580,72
29+
€573,80
39+
€566,89
49+
€559,98
74+
€553,06
99+
€518,50
199+
€511,58
249+
€504,67
499+
€497,76
999+
€483,93
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 145mm
- Width:
- 9mm
Technical
Technical
| Dc1 | 110mm |
|---|---|
| D | 145mm |
| B1 | 9mm |
| Eb | 114.2mm |
| Ea | 137.3mm |
| Dynamic load | 77 kN |
| Static load | 550 kN |
| Speed rating in oil | 2000 rpm |
| Mass | 0.393 kg |
