SKU: AXK0619TN-MB

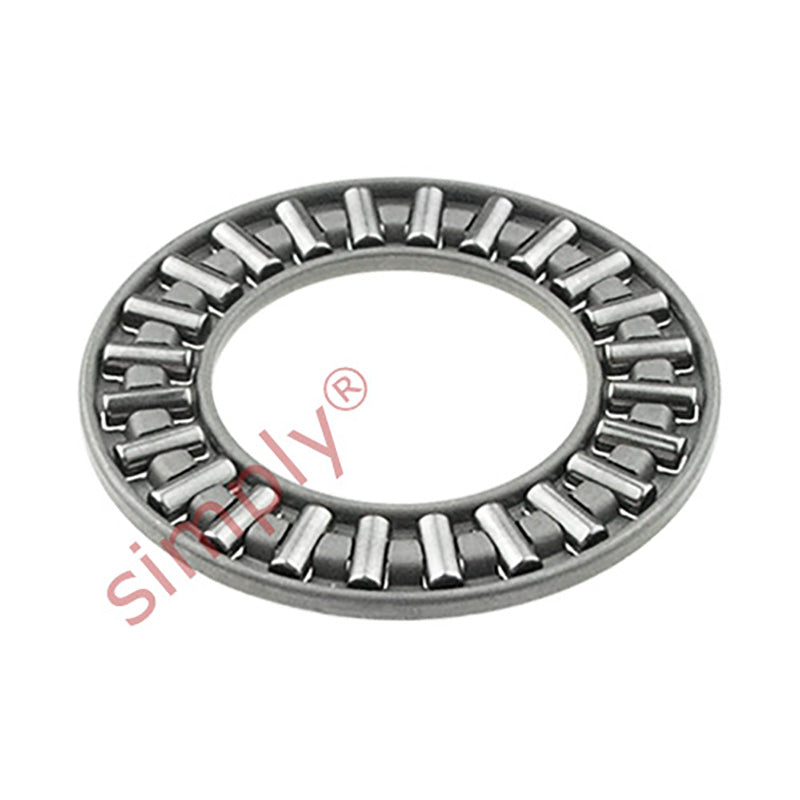

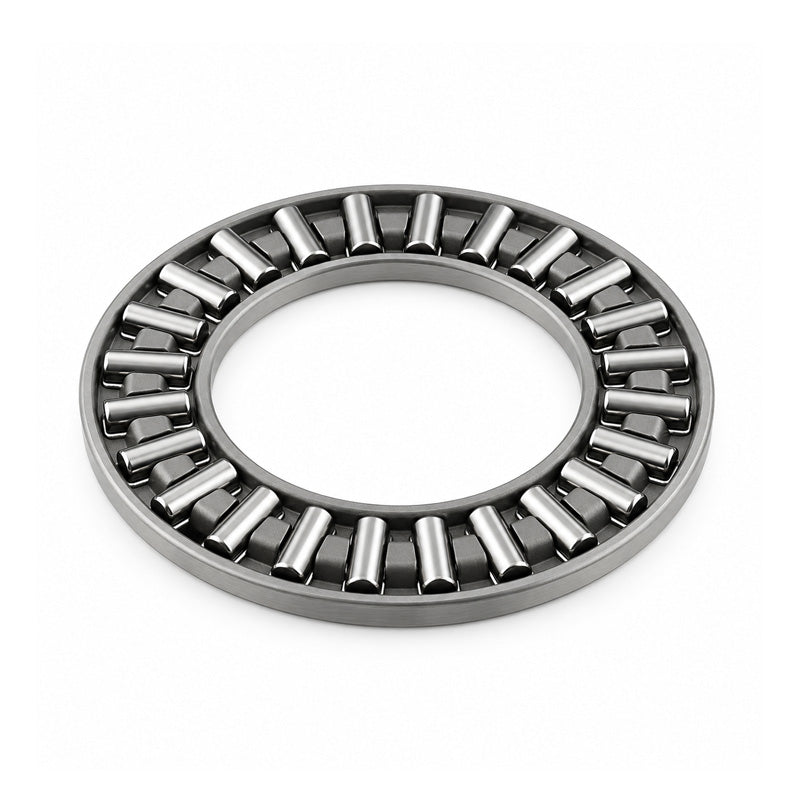

Major Brand AXK0619TN Needle Roller Cage 6x19x2mm
Major Brand AXK0619TN Needle Roller Cage 6x19x2mm
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
In stock
Price Break
10+
€3,77
19+
€3,56
29+
€3,51
39+
€3,47
49+
€3,43
74+
€3,39
99+
€3,17
199+
€3,13
249+
€3,09
499+
€3,05
999+
€2,96
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 2mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 19mm |
| Dw | 2mm |
| Ea | 7mm |
| Eb | 18mm |
| Dynamic load | 6300 N |
| Static load | 16000 N |
| Fatigue load limit Pu | 1750 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6000 rpm |
| Weight (assembly) | 1 g |
| D | 19mm |
| B | 2.75mm |
