SKU: AXK0821TN-MB

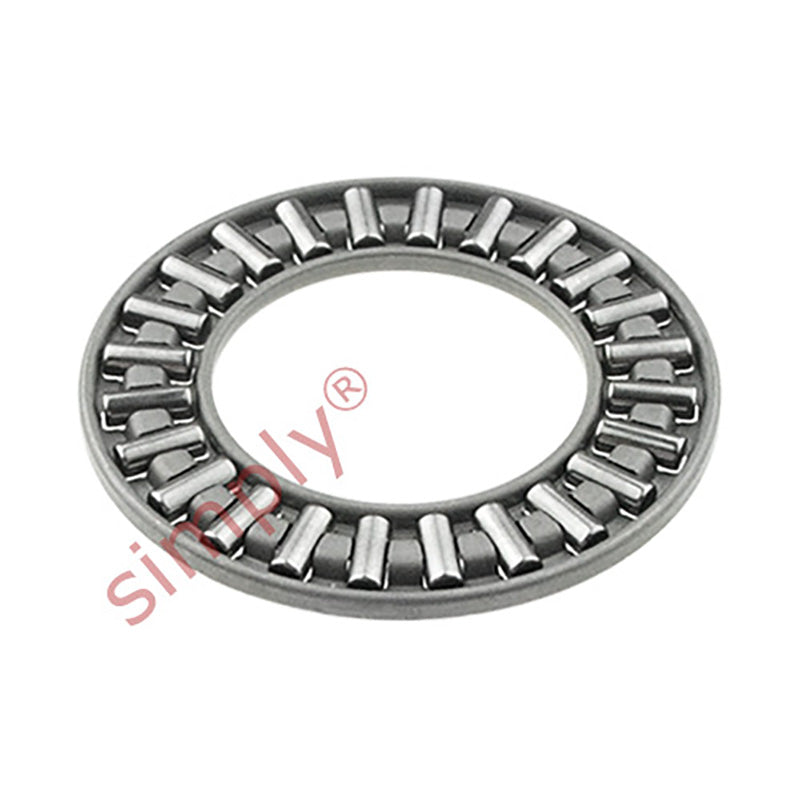

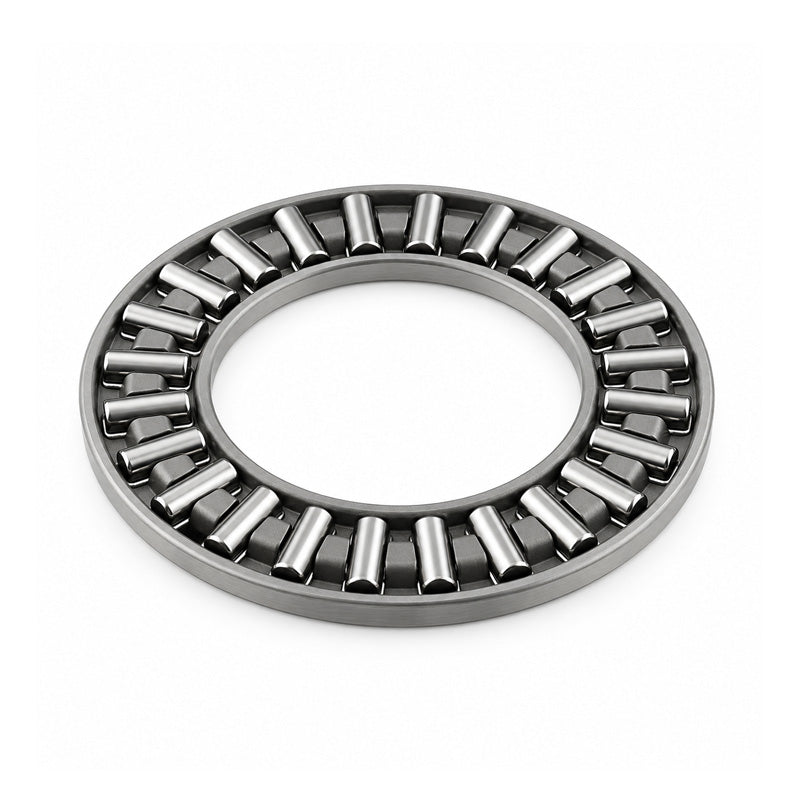

Major Brand AXK0821TN Needle Roller Cage 8x21x2mm
Major Brand AXK0821TN Needle Roller Cage 8x21x2mm
Regular price
€3,95
ex VAT
Regular price
Sale price
€3,95
ex VAT
In stock
Price Break
10+
€2,49
19+
€2,35
29+
€2,32
39+
€2,30
49+
€2,27
74+
€2,24
99+
€2,10
199+
€2,07
249+
€2,04
499+
€2,02
999+
€1,96
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 21mm
- Width:
- 2mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 21mm |
| Dw | 2mm |
| Ea | 9mm |
| Eb | 20mm |
| Dynamic load | 7200 N |
| Static load | 20000 N |
| Fatigue load limit Pu | 2200 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 5600 rpm |
| Weight (assembly) | 2 g |
| D | 21mm |
| B | 2.75mm |
