SKU: AXK100135-MB

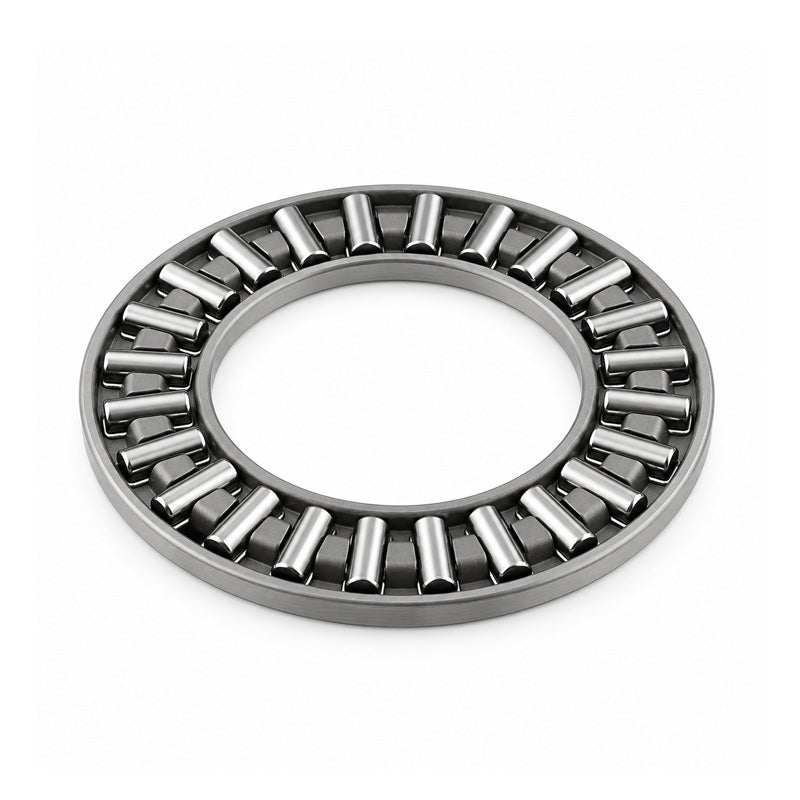

Major Brand AXK100135 Needle Roller Cage 100x135x4mm
Major Brand AXK100135 Needle Roller Cage 100x135x4mm
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
10+
€19,19
19+
€18,11
29+
€17,89
39+
€17,68
49+
€17,46
74+
€17,25
99+
€16,17
199+
€15,95
249+
€15,74
499+
€15,52
999+
€15,09
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 4mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 135mm |
| Dw | 4mm |
| Ea | 105mm |
| Eb | 133mm |
| Dynamic load | 76500 N |
| Static load | 560000 N |
| Fatigue load limit Pu | 65500 N |
| Speed in grease | 850 rpm |
| Speed in oil | 1200 rpm |
| Weight (assembly) | 105 g |
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
