SKU: AXK1113-NTN

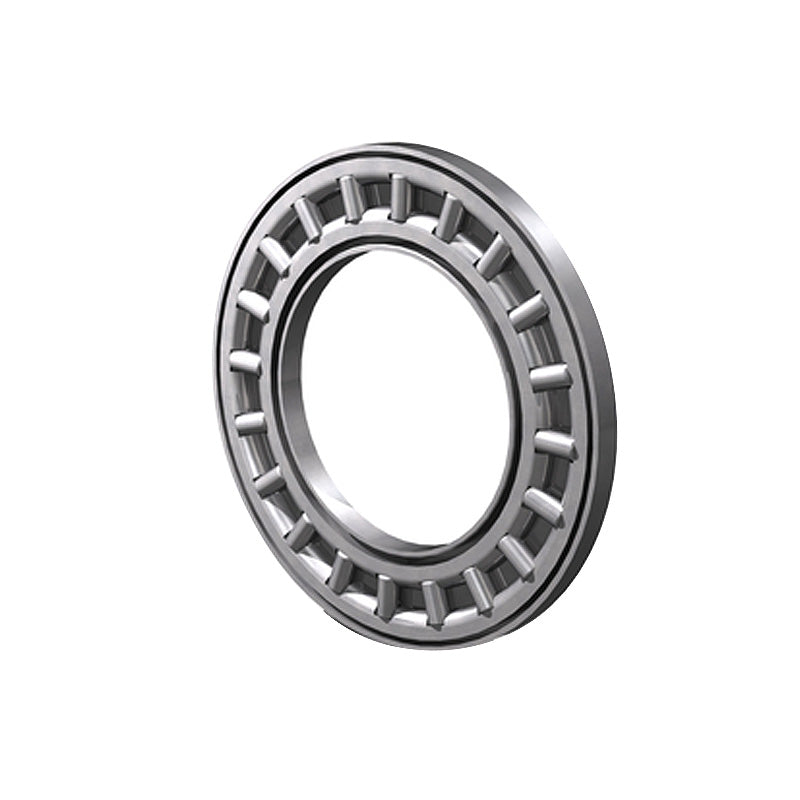

NTN AXK1113 Needle Roller Cage Only 65x90x3mm - Allow 2-3 Days
NTN AXK1113 Needle Roller Cage Only 65x90x3mm - Allow 2-3 Days
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
Low stock
Price Break
3+
€7,72
4+
€7,28
9+
€7,20
19+
€7,11
49+
€7,02
99+
€6,94
499+
€6,50
999+
€6,42
1999+
€6,33
2999+
€6,24
4999+
€6,07
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 3mm
Technical
Technical
| Dc1 - Inside diameter | 65mm |
|---|---|
| Dc - Outside diameter | 90mm |
| Dw - Roller Width | 3mm |
| AS washer reference | AS1113 |
| WS inner ring reference | WS81113 |
| GS outer ring reference | GS81113 |
| Ea - Rollers reference outer diameter | 86.9mm |
| Eb - Rollers reference inner diameter | 71mm |
| Ca - Dynamic axial load rating | 46.5 kN |
| C0a - Static axial load rating | 254 kN |
| Cua - Limit axial load rating | 31 kN |
| Grease lubrication limit speed | 750 tr/min |
| Oil lubrication limit speed | 3000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
