SKU: AXK1115-NTN

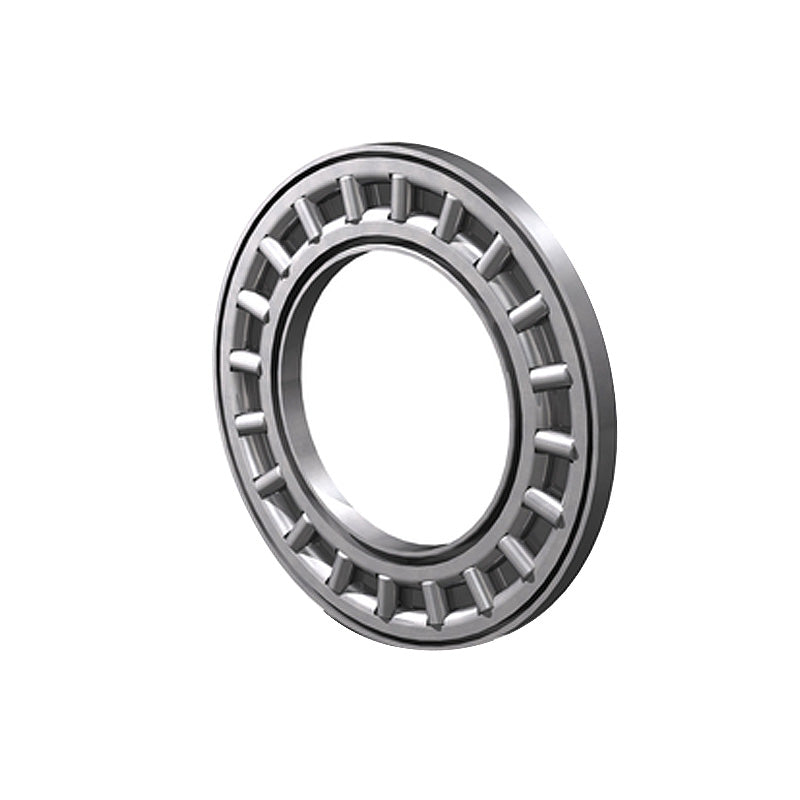

NTN AXK1115 Needle Roller Cage Only 75x100x4mm - Allow 2-3 Days
NTN AXK1115 Needle Roller Cage Only 75x100x4mm - Allow 2-3 Days
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
3+
€10,96
4+
€10,52
9+
€10,30
19+
€9,96
49+
€9,74
99+
€9,19
499+
€7,75
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 4mm
Technical
Technical
| Dc1 - Inside diameter | 75mm |
|---|---|
| Dc - Outside diameter | 100mm |
| Dw - Roller Width | 4mm |
| AS washer reference | AS1115 |
| WS inner ring reference | WS81115 |
| GS outer ring reference | GS81115 |
| Ea - Rollers reference outer diameter | 96.4mm |
| Eb - Rollers reference inner diameter | 80.5mm |
| Ca - Dynamic axial load rating | 55 kN |
| C0a - Static axial load rating | 266 kN |
| Cua - Limit axial load rating | 32.5 kN |
| Grease lubrication limit speed | 700 tr/min |
| Oil lubrication limit speed | 2700 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
