SKU: AXK1629

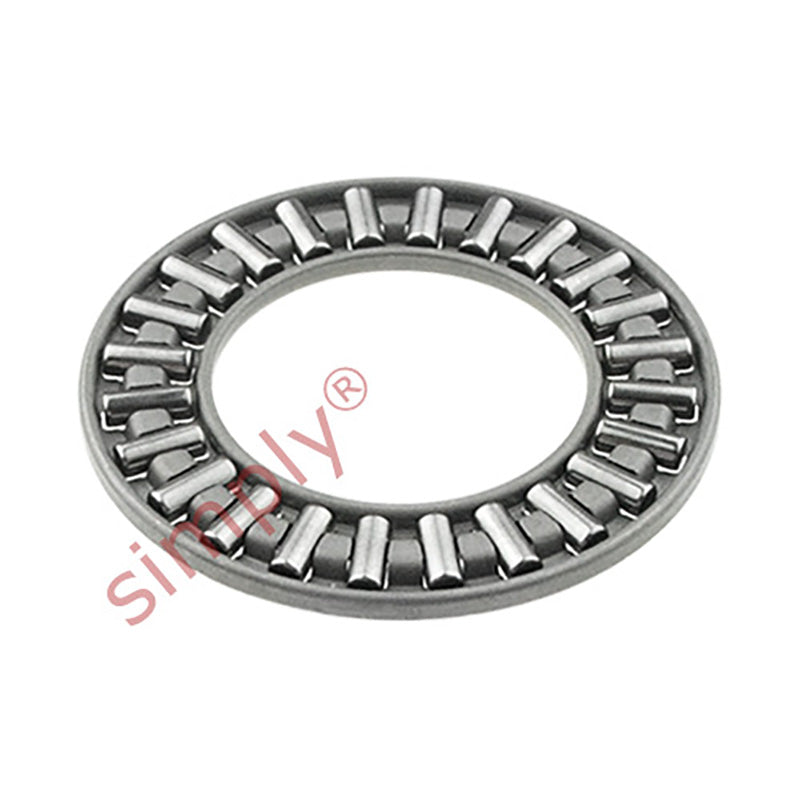

Major Brand AXK1629 Needle Roller Cage 16x29x2mm
Major Brand AXK1629 Needle Roller Cage 16x29x2mm
Regular price
€3,95
ex VAT
Regular price
Sale price
€3,95
ex VAT
In stock
Price Break
10+
€2,57
19+
€2,42
29+
€2,40
39+
€2,37
49+
€2,34
74+
€2,31
99+
€2,16
199+
€2,14
249+
€2,11
499+
€2,08
999+
€2,02
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 2mm
Technical
Technical
| d | 16mm |
|---|---|
| D | 29mm |
| Dw | 2mm |
| Dynamic load | 9070 N |
| Static load | 31400N |
| Raceway Washer | LS1629 |
| Thrust Washer | AS1629 |
