SKU: AXK2542-MB-AS2542-MB

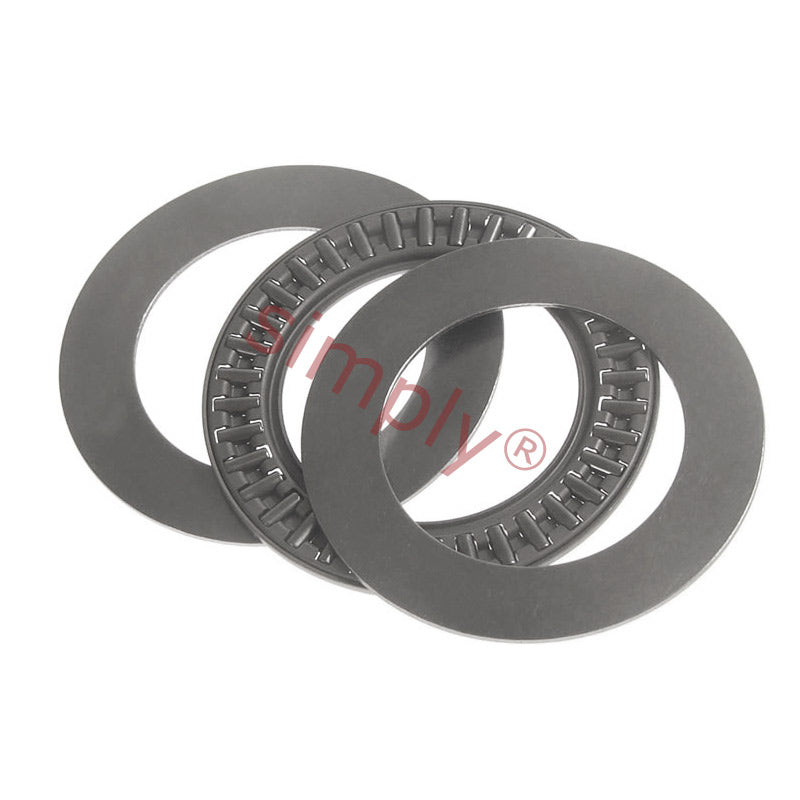

Major Brand AXK2542 Needle Roller Cage with 2 AS2542 Washers 25x42x4mm
Major Brand AXK2542 Needle Roller Cage with 2 AS2542 Washers 25x42x4mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
10+
€4,65
19+
€4,39
29+
€4,34
39+
€4,29
49+
€4,23
74+
€4,18
99+
€3,92
199+
€3,87
249+
€3,82
499+
€3,76
999+
€3,66
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 4mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| Dw | 4mm total (2 washers at 1mm each) |
| Ea | 29mm |
| Eb | 41mm |
| Dynamic load | 13400 N |
| Static load | 60000 N |
| Fatigue load limit Pu | 6700 N |
| Speed in grease | 2200 rpm |
| Speed in oil | 3200 rpm |
| Weight (assembly) | 7 g |
| d1 | 42mm |
| D | 42mm |
| D1 | 26mm |
| B | 3mm |
