SKU: AXW15-MB

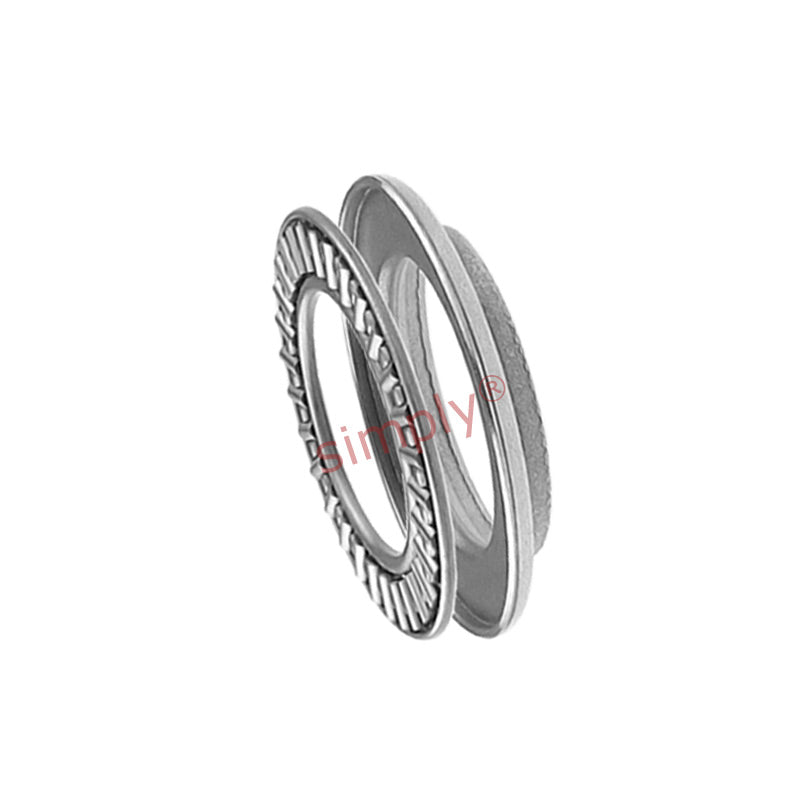

INA / SKF AXW15 Thrust Race with Centering Spigot 15x31x3.2mm
INA / SKF AXW15 Thrust Race with Centering Spigot 15x31x3.2mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
In stock
Price Break
10+
€4,45
19+
€4,20
29+
€4,15
39+
€4,10
49+
€4,05
74+
€4,00
99+
€3,75
199+
€3,70
249+
€3,65
499+
€3,60
999+
€3,50
Share this product
Description
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 31mm
- Width:
- 3.2mm
Technical
Technical
| Inside diameter | 15mm |
|---|---|
| Outside diameter | 31mm |
| B | 3.2mm |
| B1 | 3.5mm |
| D1 | 21mm |
| Ea | 17mm |
| Eb | 27mm |
| Weight | 10 g |
| Dynamic load | 11300 N |
| Static load | 36000 N |
| Fatigue load limit | 3600 N |
| Limiting speed | 13200 rpm |
| Reference speed | 5800 rpm |
| Bearing washer to use | <a href="advanced_search_result.php?search_in_description=0&keywords=AS1528">Click Here AS1528 |
