SKU: BAM.108

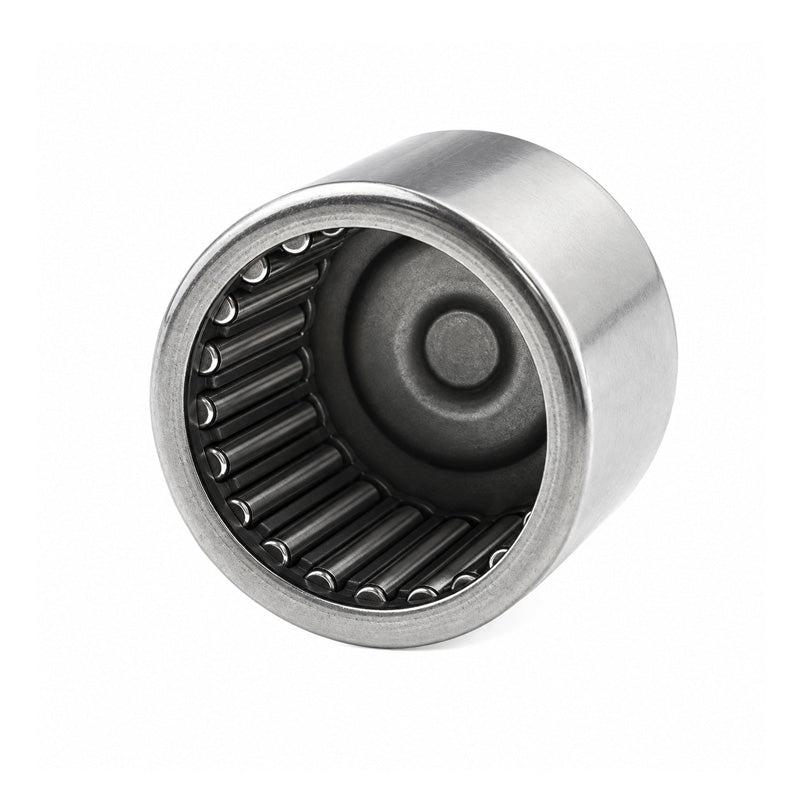

BAM108 Imperial Closed End Needle Roller Bearing 5/8x13/16x1/2 inch
BAM108 Imperial Closed End Needle Roller Bearing 5/8x13/16x1/2 inch
Regular price
€16,10
ex VAT
Regular price
Sale price
€16,10
ex VAT
Equivalent to: MJ1081 BCE108 4895H AYP4895H
In stock
Price Break
10+
€14,33
19+
€13,52
29+
€13,36
39+
€13,20
49+
€13,04
74+
€12,88
99+
€12,08
199+
€11,91
249+
€11,75
499+
€11,59
999+
€11,27
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ1081 BCE108 4895H AYP4895H
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 5/8 inch |
|---|---|
| D | 13/16 inch |
| C | 1/2 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 5420 N |
| Static Load C0 | 7310 N |
| Weight | 9.9 g |
