SKU: BAM.2216

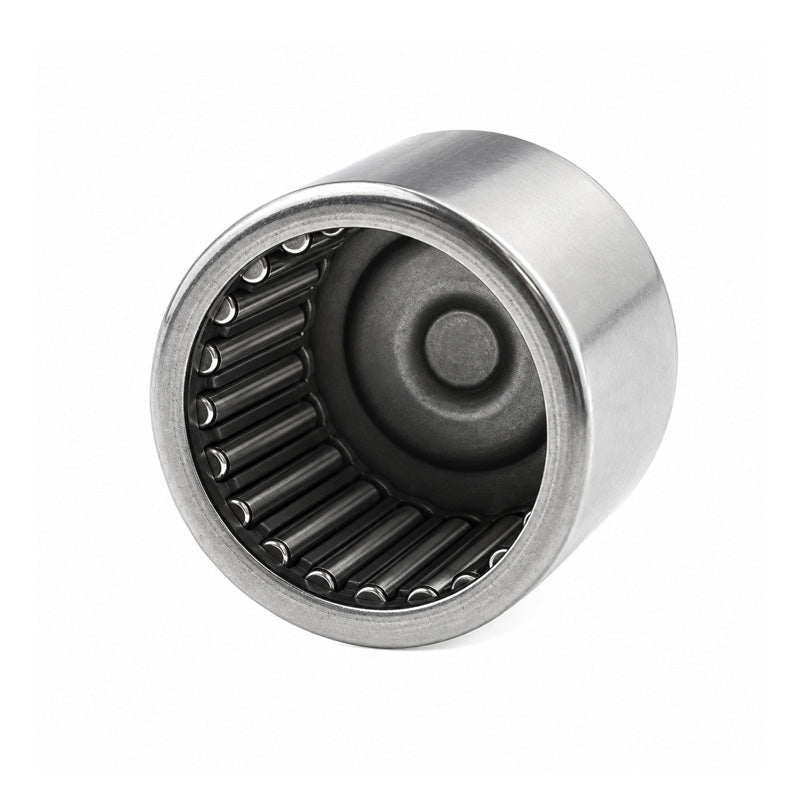

BAM2216 Imperial Closed End Needle Roller Bearing 1-3/8x1-5/8x1 inch
BAM2216 Imperial Closed End Needle Roller Bearing 1-3/8x1-5/8x1 inch
Regular price
€10,06
ex VAT
Regular price
Sale price
€10,06
ex VAT
In stock
Price Break
10+
€8,95
19+
€8,45
29+
€8,35
39+
€8,25
49+
€8,15
74+
€8,05
99+
€7,55
199+
€7,44
249+
€7,34
499+
€7,24
999+
€7,04
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-5/8 inch |
| C | 1 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 23100 N |
| Static Load C0 | 50200 N |
| Weight | 53 g |
