SKU: BAM.2816

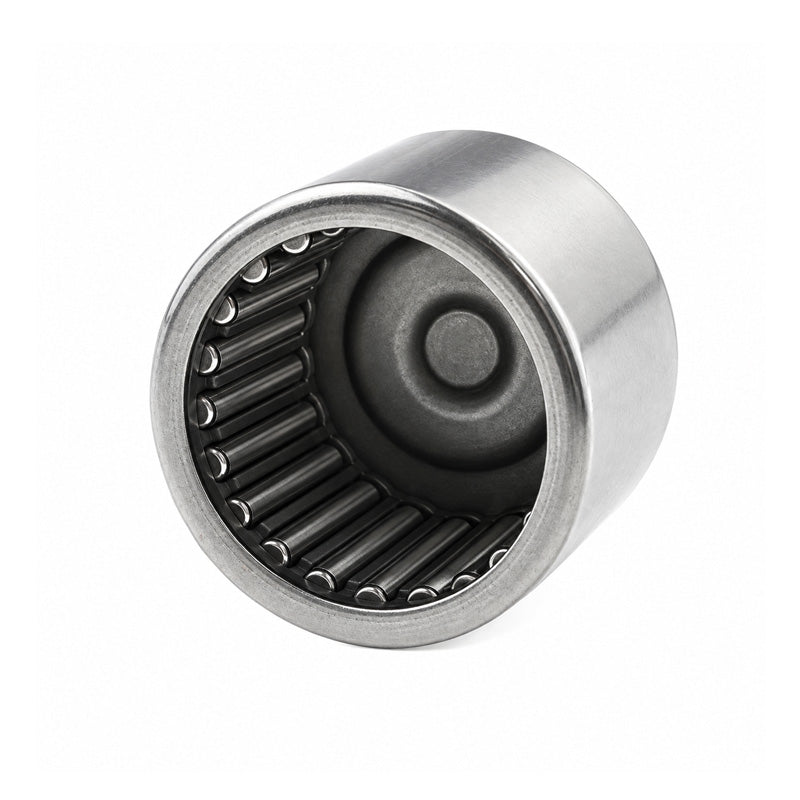

BAM2816 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1 inch
BAM2816 Imperial Closed End Needle Roller Bearing 1-3/4x2-1/8x1 inch
Regular price
€13,87
ex VAT
Regular price
Sale price
€13,87
ex VAT
Equivalent to: MJ28161 BCE2816
In stock
Price Break
10+
€12,34
19+
€11,65
29+
€11,51
39+
€11,37
49+
€11,23
74+
€11,10
99+
€10,40
199+
€10,26
249+
€10,13
499+
€9,99
999+
€9,71
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ28161 BCE2816
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-1/8 inch |
| C | 1 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 34800 N |
| Static Load C0 | 67400 N |
| Weight | 103 g |
