SKU: BAM.3224

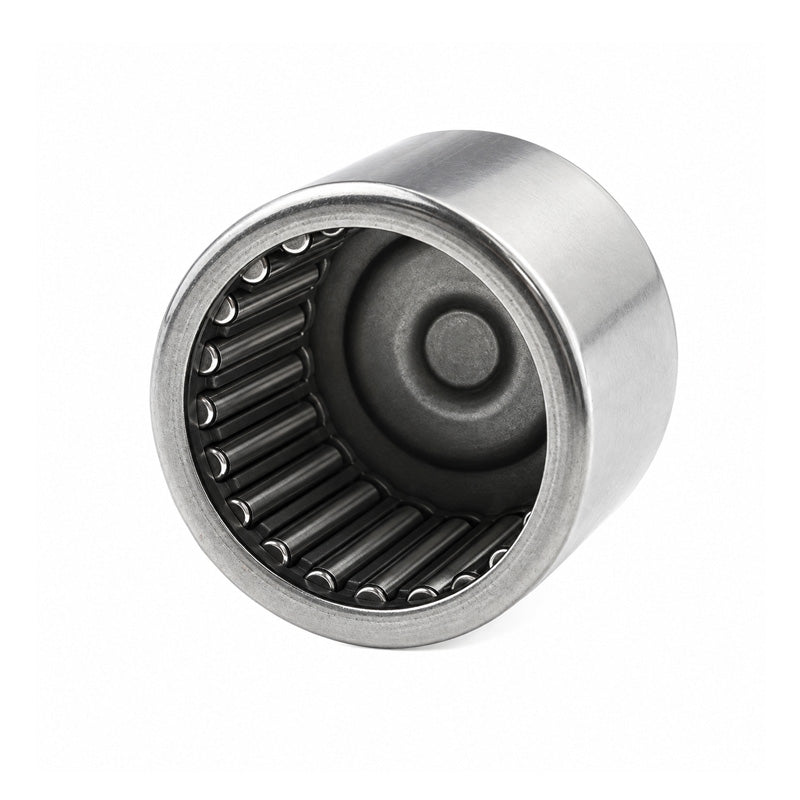

BAM3224 Imperial Closed End Needle Roller Bearing 2x2-3/8x1-1/2 inch
BAM3224 Imperial Closed End Needle Roller Bearing 2x2-3/8x1-1/2 inch
Regular price
€15,88
ex VAT
Regular price
Sale price
€15,88
ex VAT
In stock
Price Break
10+
€14,13
19+
€13,34
29+
€13,18
39+
€13,02
49+
€12,86
74+
€12,70
99+
€11,91
199+
€11,75
249+
€11,59
499+
€11,43
999+
€11,12
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 2 inch |
|---|---|
| D | 2-3/8 inch |
| C | 1-1/2 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 55500 N |
| Static Load C0 | 128000 N |
| Weight | 170 g |
