SKU: BAM.328

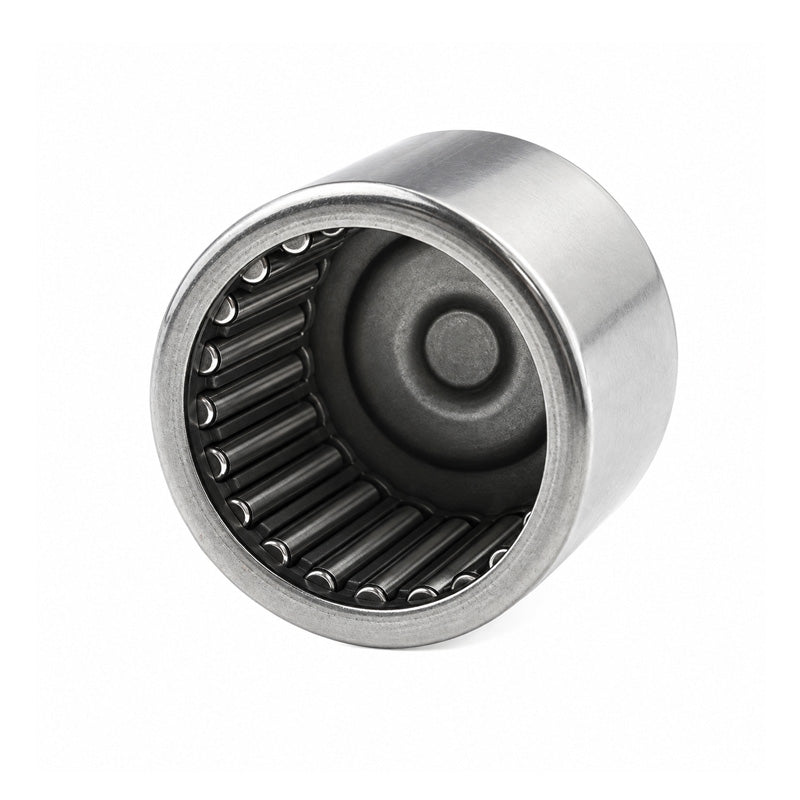

BAM328 Imperial Closed End Needle Roller Bearing 2x2-3/8x1/2 inch
BAM328 Imperial Closed End Needle Roller Bearing 2x2-3/8x1/2 inch
Regular price
€12,89
ex VAT
Regular price
Sale price
€12,89
ex VAT
In stock
Price Break
10+
€11,47
19+
€10,83
29+
€10,70
39+
€10,57
49+
€10,44
74+
€10,31
99+
€9,67
199+
€9,54
249+
€9,41
499+
€9,28
999+
€9,02
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 2 inch |
|---|---|
| D | 2-3/8 inch |
| C | 1/2 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 15400 N |
| Static Load C0 | 24700 N |
| Weight | 66 g |
