SKU: BAM.3424

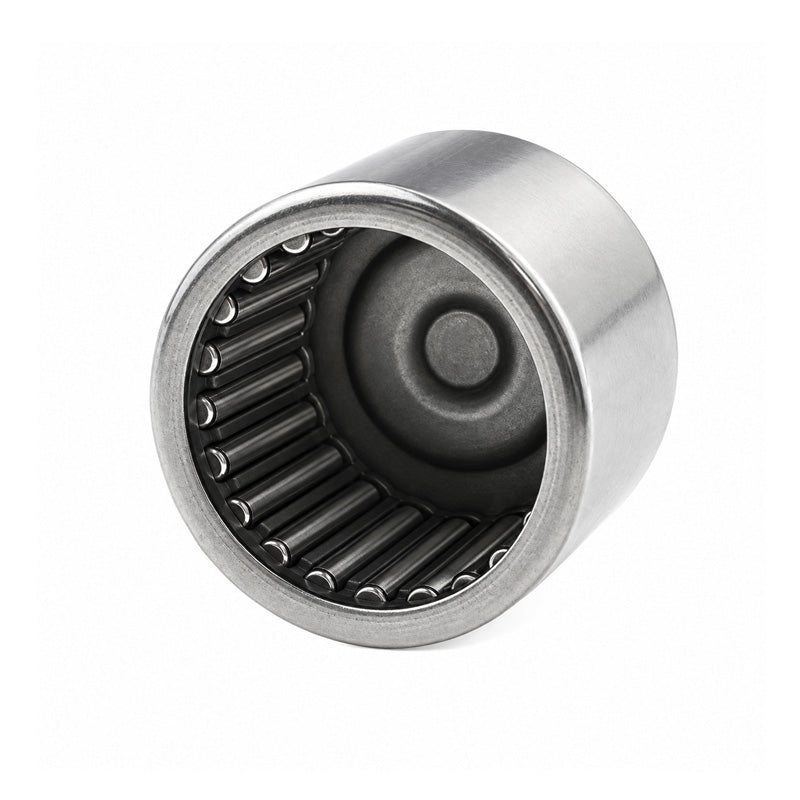

BAM3424 Imperial Closed End Needle Roller Bearing 2-1/8x2-1/2x1-1/2 inch
BAM3424 Imperial Closed End Needle Roller Bearing 2-1/8x2-1/2x1-1/2 inch
Regular price
€25,59
ex VAT
Regular price
Sale price
€25,59
ex VAT
In stock
Price Break
10+
€22,78
19+
€21,50
29+
€21,24
39+
€20,98
49+
€20,73
74+
€20,47
99+
€19,19
199+
€18,94
249+
€18,68
499+
€18,42
999+
€17,91
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 2-1/8 inch |
|---|---|
| D | 2-1/2 inch |
| C | 1-1/2 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 57900 N |
| Static Load C0 | 138000 N |
| Weight | 180 g |
