SKU: BAM.78

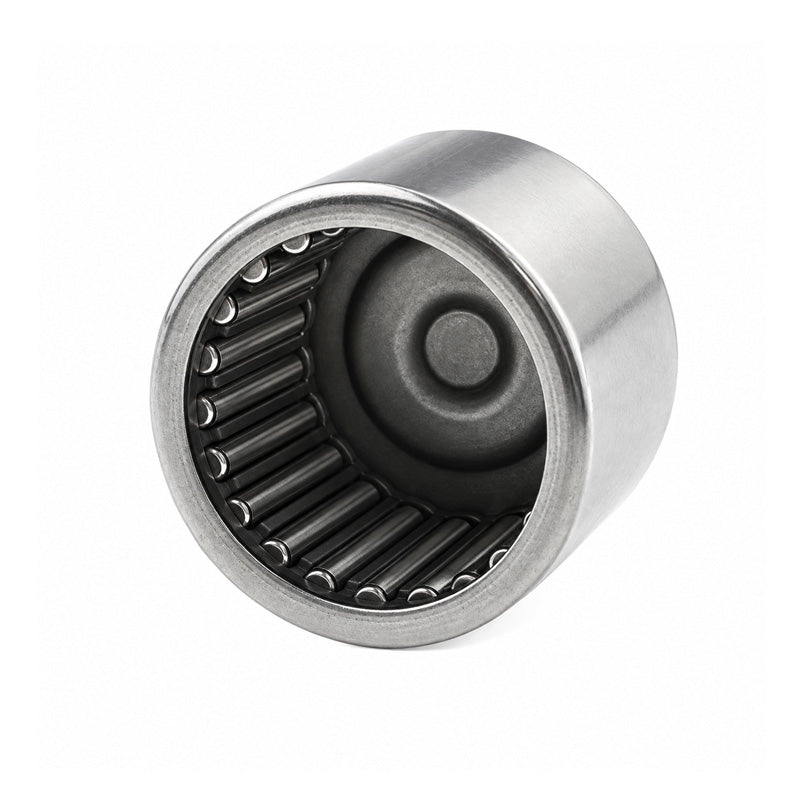

BAM78 Imperial Closed End Needle Roller Bearing 7/16x5/8x1/2 inch
BAM78 Imperial Closed End Needle Roller Bearing 7/16x5/8x1/2 inch
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
Equivalent to: MJ781 BCE78
In stock
Price Break
10+
€4,41
19+
€4,16
29+
€4,11
39+
€4,06
49+
€4,01
74+
€3,96
99+
€3,71
199+
€3,66
249+
€3,61
499+
€3,56
999+
€3,47
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ781 BCE78
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 7/16 inch |
|---|---|
| D | 5/8 inch |
| C | 1/2 inch |
| t2 max | 1mm |
| Dynamic Load C | 4460 N |
| Static Load C0 | 5130 N |
| Weight | 7 g |
