SKU: BB-608-D180-10-ES

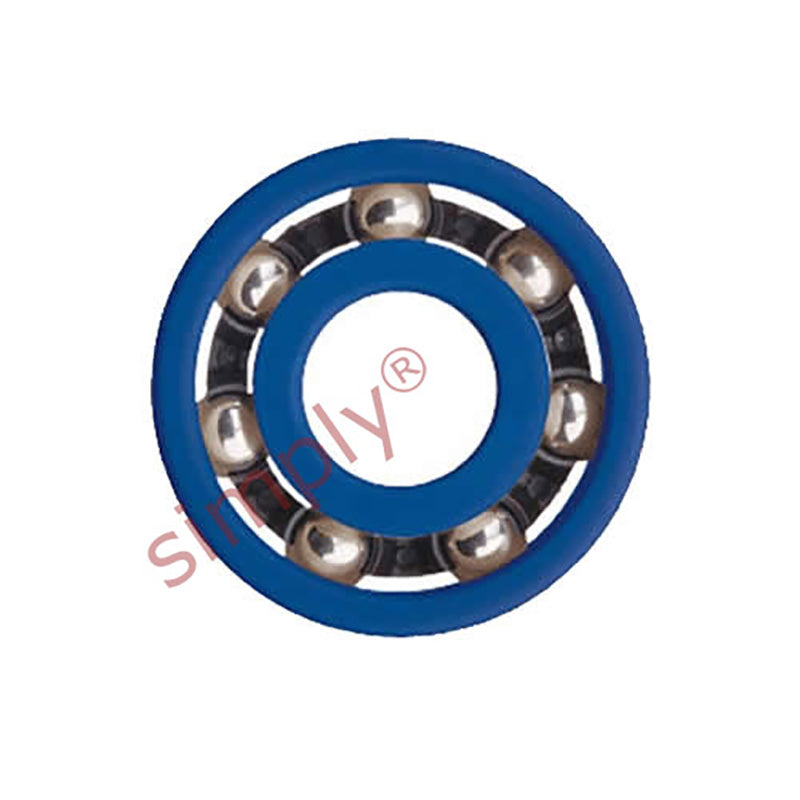

xiros xirodur BB608D18010ES Open Type Polymer Ball Bearing with PA Cage and Stainless Steel Balls 8x22x7mm - Allow 2-3 Days
xiros xirodur BB608D18010ES Open Type Polymer Ball Bearing with PA Cage and Stainless Steel Balls 8x22x7mm - Allow 2-3 Days
Regular price
€12,19
ex VAT
Regular price
Sale price
€12,19
ex VAT
In stock
Price Break
10+
€10,85
19+
€10,24
29+
€10,12
39+
€10,00
49+
€9,87
74+
€9,75
99+
€9,14
199+
€9,02
249+
€8,90
499+
€8,78
999+
€8,53
Couldn't load pickup availability
Description
Description
|
IGUS xiros® xirodur® D180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. Bearings of this specially developed material xirodur® D180 are suitable for high rotating speeds. They are extremely wear resistant and archive a very high lifetime. Benefits: Lubrication- and maintenance-free, for high rotation speeds, long service life (up to 4x better than xirodur® B180), light weight |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 22mm |
| b1 | 7mm |
| Max static load capacity | 0 N |
| Static load capacity | 20 N |
| Dynamic load capacity | 42 N |
| Max speed | 4300 rpm |
| Race | D180 |
| Cage | PA |
| Ball material | Stainless Steel |
