SKU: BB-623-B180-10-ES-C

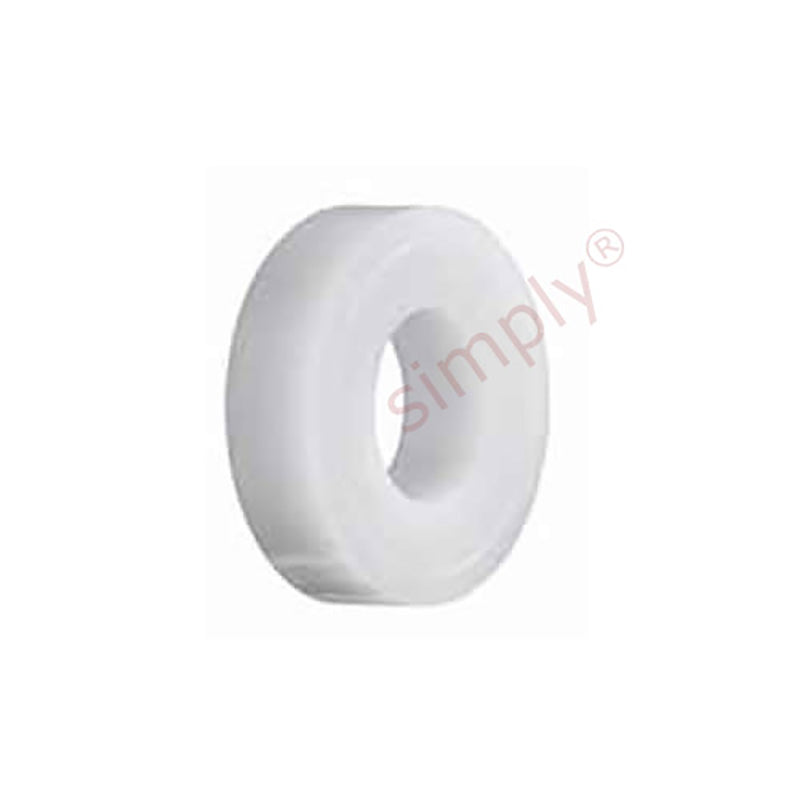

xiros xirodur BB623B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 3x10x4mm - Allow 2-3 Days
xiros xirodur BB623B18010ESC Polymer Ball Bearing with PA Cage and Stainless Steel Balls and Cover Plate 3x10x4mm - Allow 2-3 Days
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
5+
€9,20
9+
€8,68
29+
€8,58
49+
€8,47
99+
€8,37
199+
€8,27
299+
€7,75
399+
€7,65
499+
€7,54
749+
€7,44
999+
€7,23
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: This radial deep groove ball bearings consists of a polymer cage, stainless steel balls and a cover plate. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, low friction. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 10mm
- Width:
- 4mm
- Seals / Shields:
- Cover Plate
- Clearance:
- * Standard
Technical
Technical
| d1 | 3mm |
|---|---|
| d2 | 10mm |
| b | 4mm |
| Max static axial load | 30 N |
| Static load capacity | 25 N |
| Dynamic load capacity | 35 N |
| Max speed | 4500 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
