SKU: BB-RT-01-60-ES

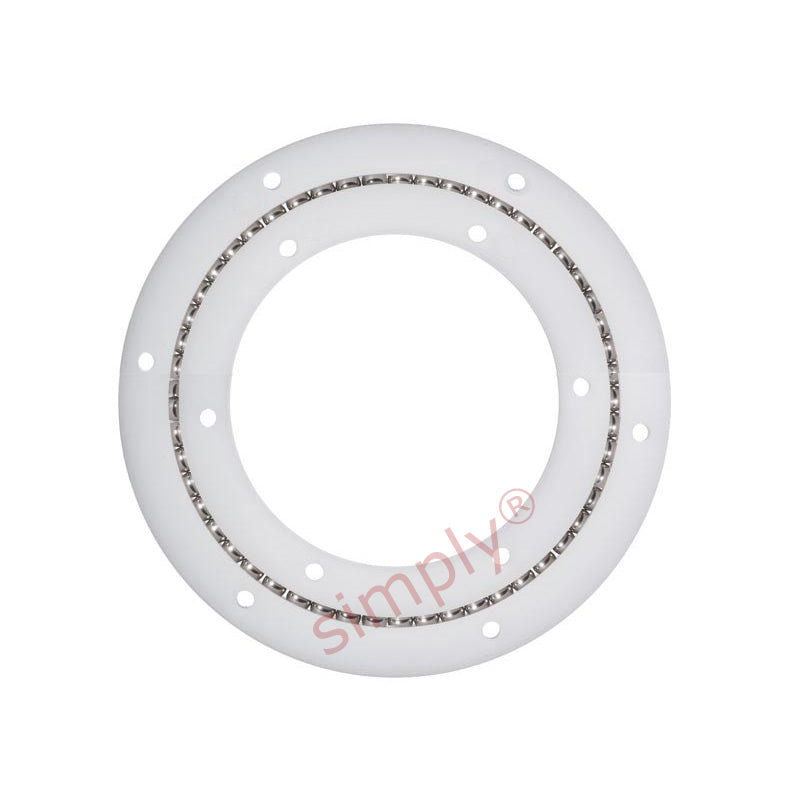

xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
Regular price
€232,07
ex VAT
Regular price
Sale price
€232,07
ex VAT
In stock
Price Break
10+
€206,54
19+
€194,94
29+
€192,62
39+
€190,30
49+
€187,98
74+
€185,66
99+
€174,05
199+
€171,73
249+
€169,41
499+
€167,09
999+
€162,45
Couldn't load pickup availability
Share this product
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 100mm
- Width:
- 17.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 100mm |
|---|---|
| D1 | 90mm |
| d | 60mm |
| d1 | 68mm |
| H | 17.5mm |
| h | 2.5mm |
| T | 60 degrees |
| K1 | 3.3mm |
| K2 | 3.3mm |
| Static load capacity | 1250 N |
| Dynamic load capacity | 250 N |
| Max speed | 1500 rpm |
| Race | B180 |
| Ball material | Stainless Steel |
