SKU: BB203KRR2FD-CX-MB

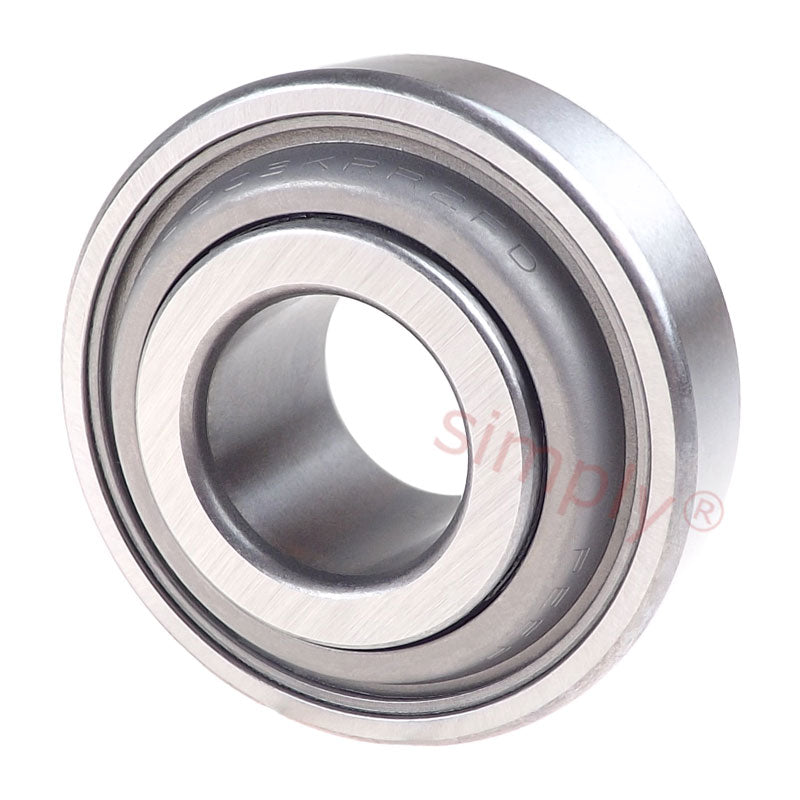

Major Brand BB203KRR2FDCX Closing Wheel Round Bore Bearing 0.64x1.5748x0.72 inch
Major Brand BB203KRR2FDCX Closing Wheel Round Bore Bearing 0.64x1.5748x0.72 inch
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
Equivalent to: BB203KRR2FD-CX
In stock
Price Break
5+
€14,25
9+
€13,45
19+
€13,29
29+
€13,13
49+
€12,97
74+
€12,81
99+
€12,01
199+
€11,85
249+
€11,69
499+
€11,53
999+
€11,21
Description
Description
Press Wheel/Closing Wheel
Application conditions:
- Press and closing wheel perform different functions in the machine but are exposed to similar application conditions; similar bearing solutions are used
- Dusty and sometimes moist environment
Increased productivity and bearing life in field:
- Optimized internal geometry
- High load capacity
- High contamination feature package with exclusive sealing system
- PEER offers the industries largest range of high performance seeding bearings
Seal Type: Y, DBL
Typical Application & Speed Limit: Planters: Press Wheel/Gauge Wheel - Basic BRG. Size < 205: 2000 RPM , Basic BRG. Size > 205: 1000 RPM
Typical Environment: Light direct contamination, at one foot distance from ground
Contamination Exclusion: High
Equivalent: BB203KRR2FD-CX
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 16.25mm = 0.64 inch
- Outside Diameter:
- 40mm = 1.574 inch
- Width:
- 18.28mm = 0.72 inch
Technical
Technical
| d | 0.64 inch = 16.256mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 1.5748 inch = 40mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.72 inch = 18.288mm (Tolerance +.0000 to minus 0.005) |
| Be | 0.4724 inch = 12mm (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | Y, DBL Seal |
| Load Ratings Dynamic | 1900 lbf |
| Load Ratings Static | 825 lb |
