SKU: BHA.1310.ZOH

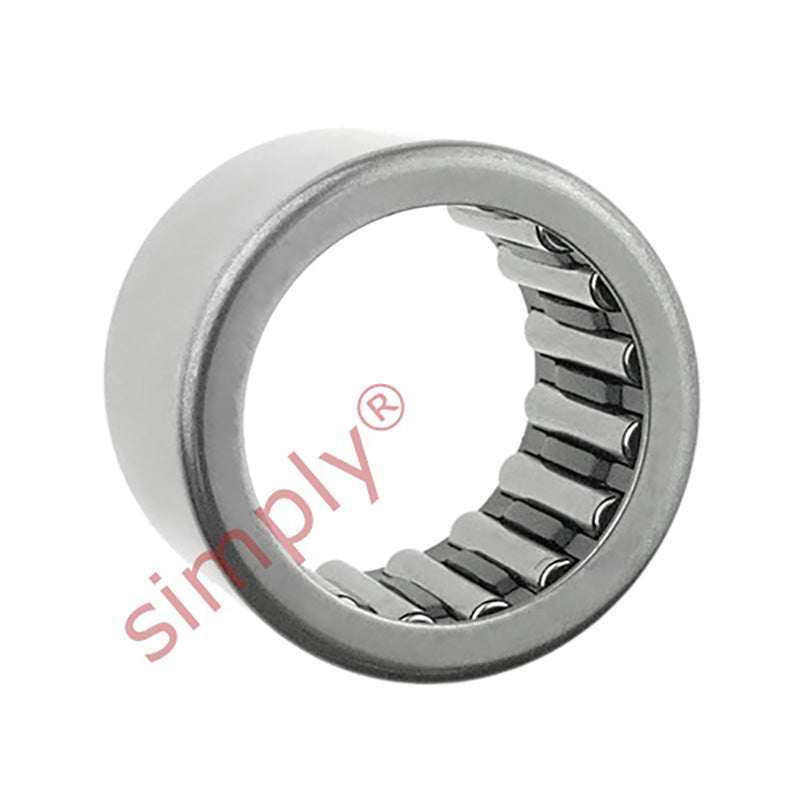

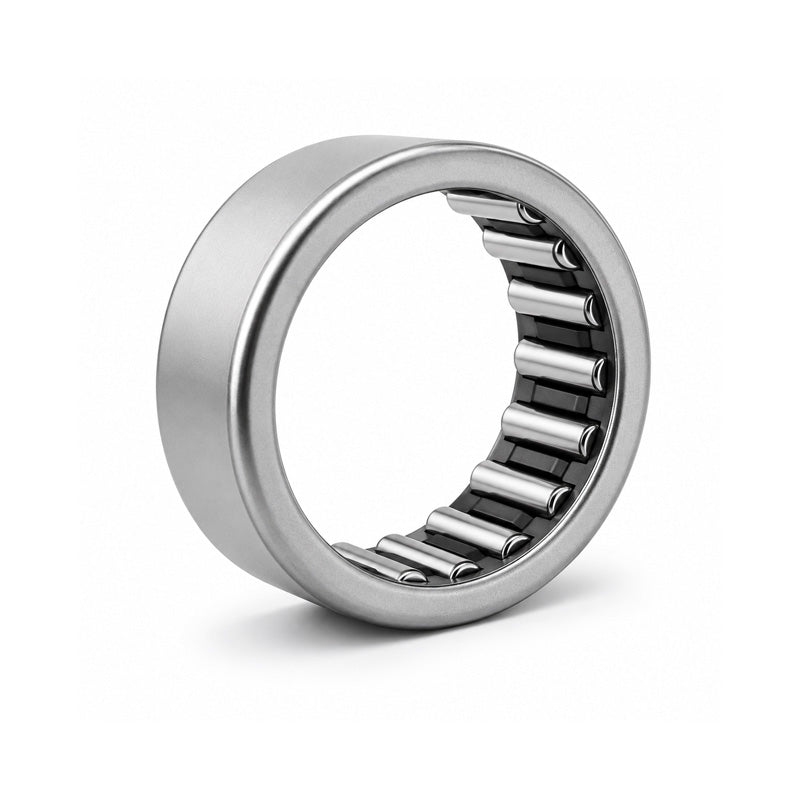

BHA1310ZOH Needle Roller Bearing 13/16x1-1/8x5/8 inch
BHA1310ZOH Needle Roller Bearing 13/16x1-1/8x5/8 inch
Regular price
€4,56
ex VAT
Regular price
Sale price
€4,56
ex VAT
In stock
Price Break
10+
€4,06
19+
€3,83
29+
€3,78
39+
€3,74
49+
€3,69
74+
€3,65
99+
€3,42
199+
€3,37
249+
€3,33
499+
€3,28
999+
€3,19
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 13/16 inch |
|---|---|
| D | 1-1/8 inch |
| C | 5/8 inch |
| Dynamic Load Cor | 13800 N |
| Static Load Cr | 18200 N |
| Weight | 0.0235 kg |
