SKU: BHAM.1612

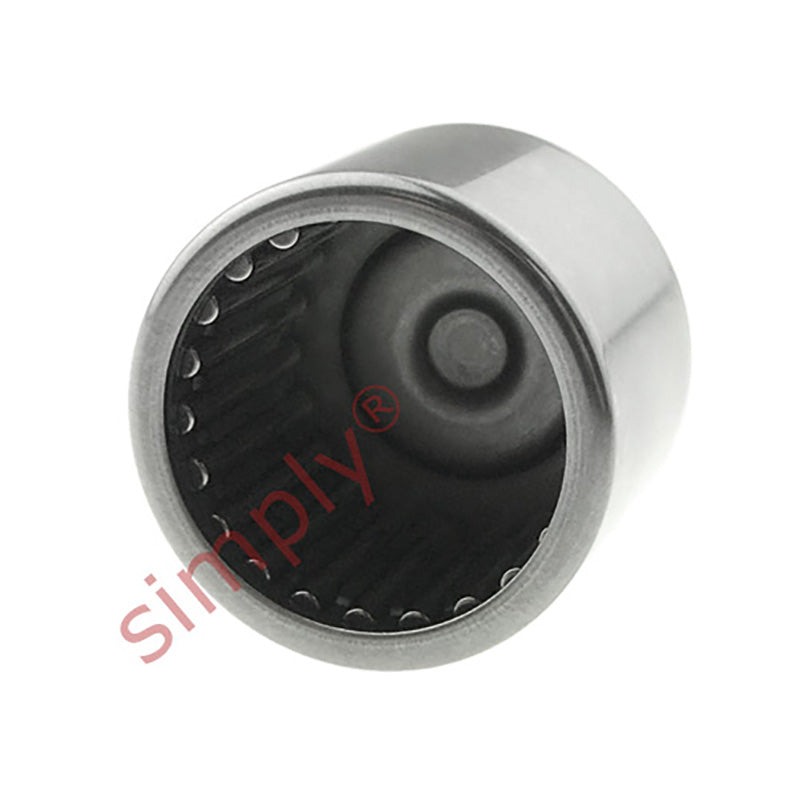

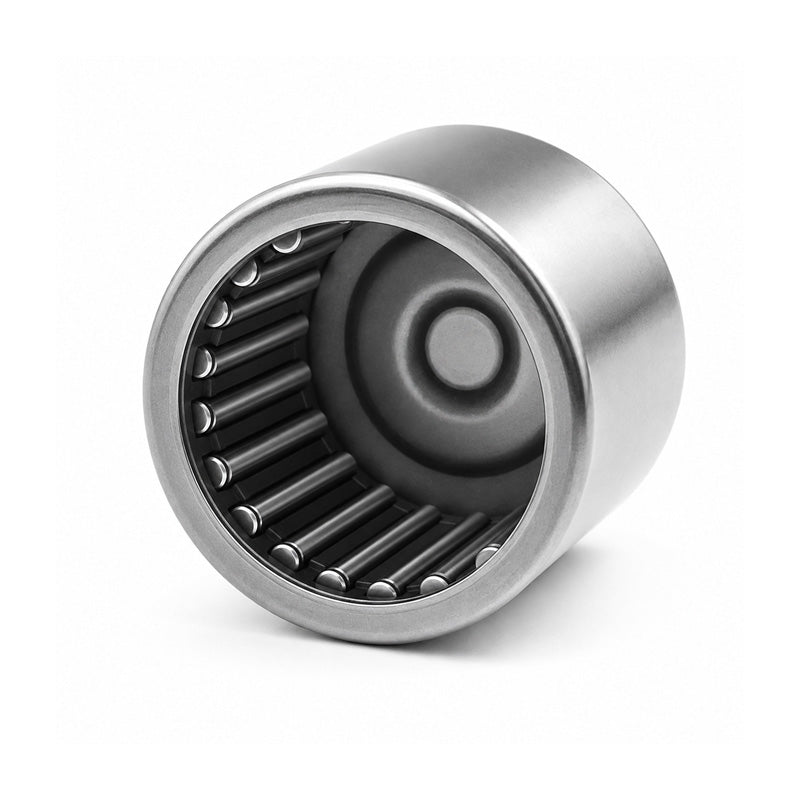

BHAM1612 Needle Roller Bearing 1x1-5/16x3/4 inch
BHAM1612 Needle Roller Bearing 1x1-5/16x3/4 inch
Regular price
€9,49
ex VAT
Regular price
Sale price
€9,49
ex VAT
Equivalent to: MJH16121 BCH1612
In stock
Price Break
10+
€8,45
19+
€7,97
29+
€7,88
39+
€7,78
49+
€7,69
74+
€7,59
99+
€7,12
199+
€7,02
249+
€6,93
499+
€6,83
999+
€6,64
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH16121 BCH1612
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1 inch |
|---|---|
| D | 1-5/16 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 19300 N |
| Static Load Cr | 29700 N |
| Weight | 0.037 kg |
