SKU: BK0306TN-EU

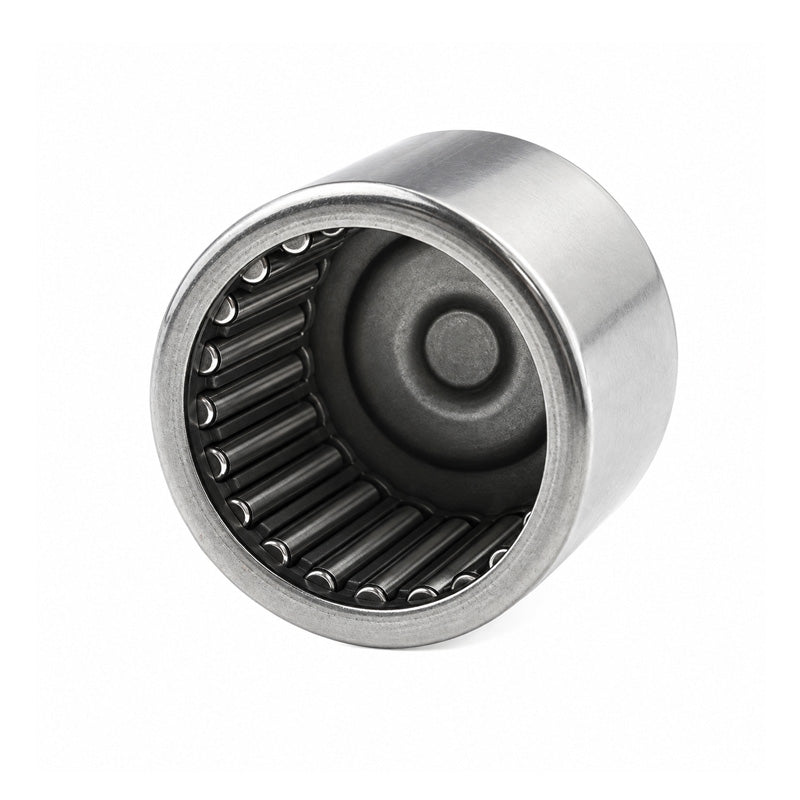

BK0306TN Budget Drawn Cup Needle Roller Bearing with One Closed End 3x6.5x6mm
BK0306TN Budget Drawn Cup Needle Roller Bearing with One Closed End 3x6.5x6mm
Regular price
€3,95
ex VAT
Regular price
Sale price
€3,95
ex VAT
In stock
Price Break
10+
€2,83
19+
€2,67
29+
€2,64
39+
€2,61
49+
€2,57
74+
€2,54
99+
€2,38
199+
€2,35
249+
€2,32
499+
€2,29
999+
€2,22
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 6.5mm
- Width:
- 6mm
Technical
Technical
| Fw | 3mm |
|---|---|
| D | 6.5mm |
| C | 6mm |
| Dynamic load C | 1230 N |
| Static load Co | 880 N |
| Fatigue load limit Pu | 88 N |
| Speed in grease | 30000 rpm |
| Speed in oil | 43000 rpm |
| C1 | 5.2mm |
| r1r2 min | 0.3mm |
| Da max | 3.5mm |
| ra max | 0.3mm |
| Weight | 1 g |
