SKU: BK1012-NTN

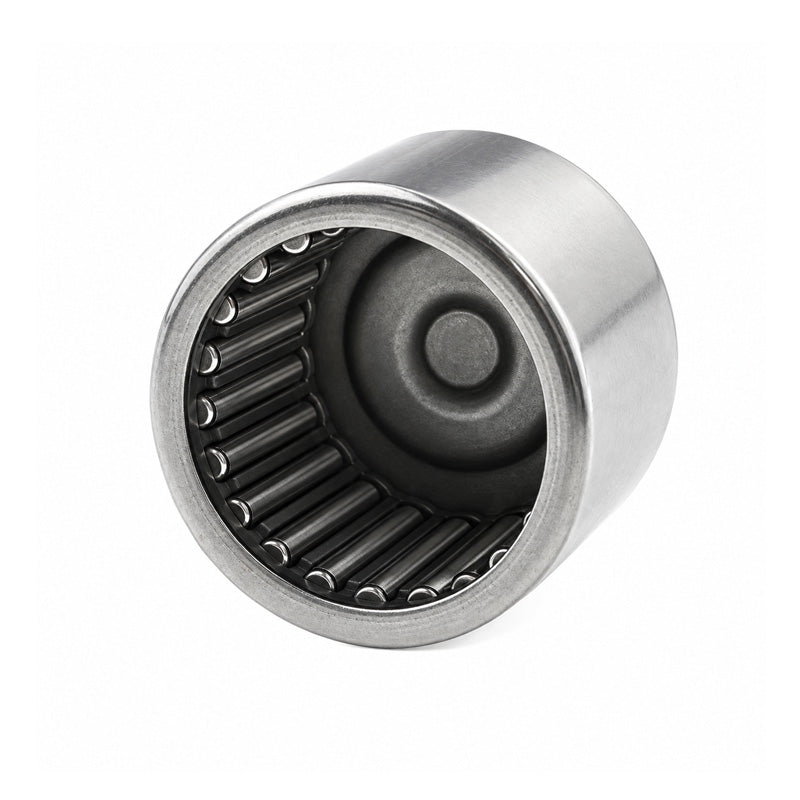

NTN BK1012 Drawn Cup Needle Roller Bearing with Closed End 10x14x12mm - Allow 2-3 Days

NTN BK1012 Drawn Cup Needle Roller Bearing with Closed End 10x14x12mm - Allow 2-3 Days
Regular price €5,95 ex VAT
Regular price Sale price €5,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,74
4+ €4,55
9+ €4,45
19+ €4,31
49+ €4,22
99+ €3,98
499+ €3,35
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 10mm
D - Outside diameter 14mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 1.6mm
Lubrication hole on outer ring? No
Inner ring reference IR7X10X16
Cr - Dynamic load rating 5.9 kN
C0r - Static load rating 7.25 kN
N - Grease lubrication limit speed 16000 tr/min
N - Oil lubrication limit speed 2400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
