SKU: BK1512-NTN

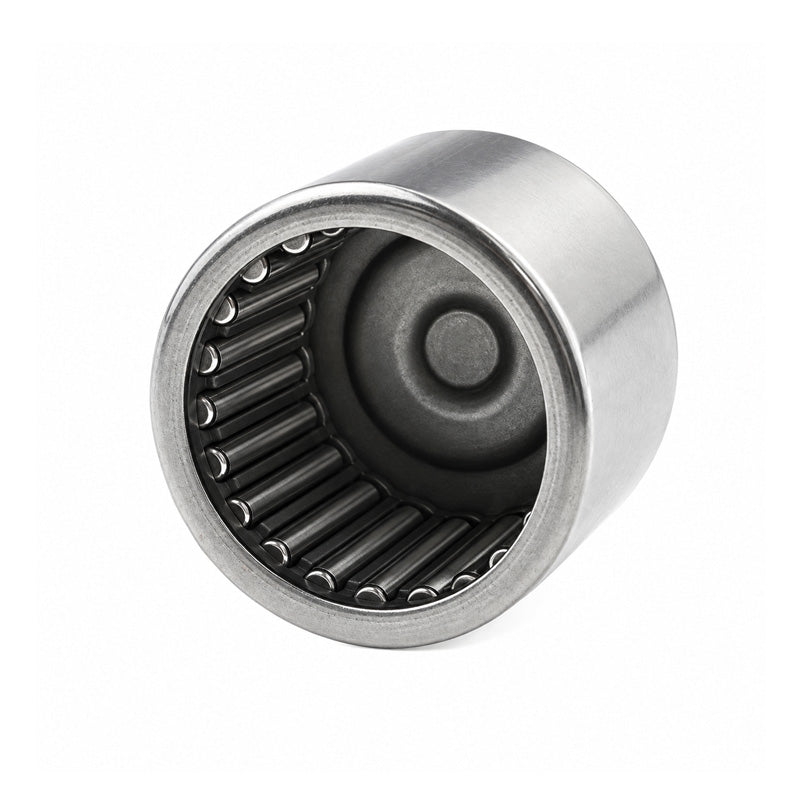

NTN BK1512 Drawn Cup Needle Roller Bearing with Closed End 15x21x12mm
NTN BK1512 Drawn Cup Needle Roller Bearing with Closed End 15x21x12mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
3+
€4,99
4+
€4,71
9+
€4,66
19+
€4,60
49+
€4,54
99+
€4,49
499+
€4,21
999+
€4,15
1999+
€4,10
2999+
€4,04
4999+
€3,93
Share this product
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 12mm
Technical
Technical
| Fw - Under rollers diameter | 15mm |
|---|---|
| D - Outside diameter | 21mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X15X12.5 |
| Cr - Dynamic load rating | 7.5 kN |
| C0r - Static load rating | 9.1 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 16000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
