SKU: BK1616-NTN

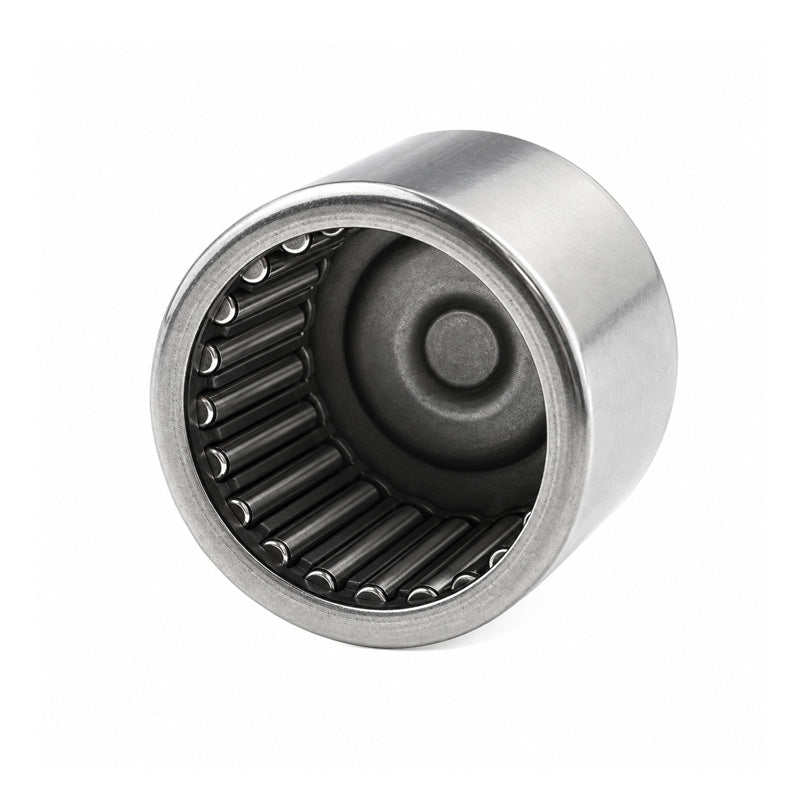

NTN BK1616 Drawn Cup Needle Roller Bearing with Closed End 16x22x16mm - Allow 2-3 Days

NTN BK1616 Drawn Cup Needle Roller Bearing with Closed End 16x22x16mm - Allow 2-3 Days
Regular price €5,95 ex VAT
Regular price Sale price €5,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,74
4+ €4,55
9+ €4,45
19+ €4,31
49+ €4,22
99+ €3,98
499+ €3,35
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 16mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR12X16X20
Cr - Dynamic load rating 11.1 kN
C0r - Static load rating 15.3 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
