SKU: BK1622ZWD-NTN

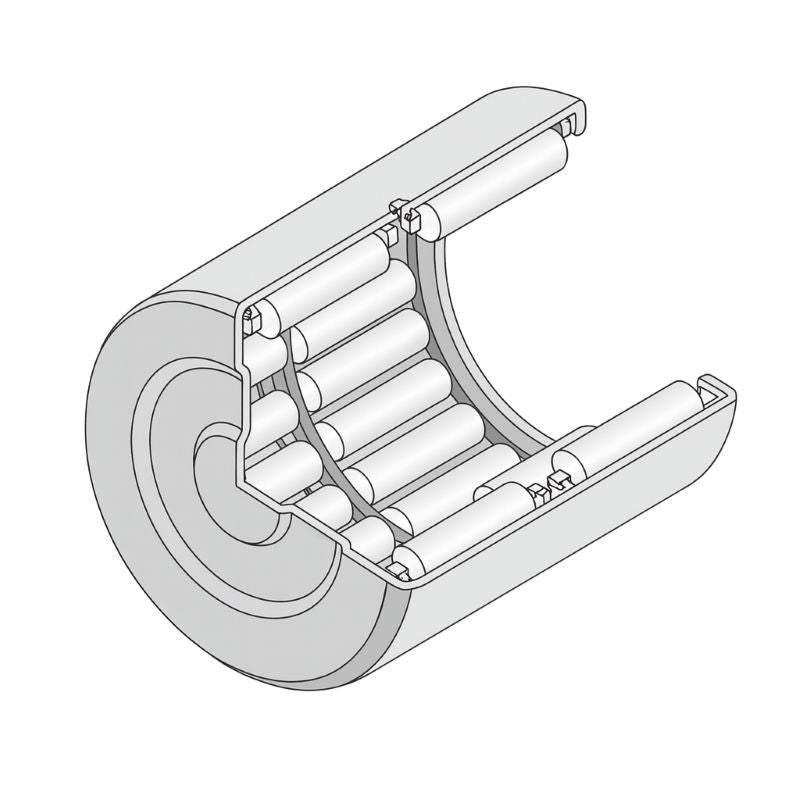

NTN BK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 16x22x22mm - Allow 2-3 Days

NTN BK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 16x22x22mm - Allow 2-3 Days
Regular price €6,95 ex VAT
Regular price Sale price €6,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,45
4+ €5,23
9+ €5,12
19+ €4,96
49+ €4,85
99+ €4,57
499+ €3,86
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 22mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Cr - Dynamic load rating 13.3 kN
C0r - Static load rating 19.4 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
