SKU: BK1816-NTN

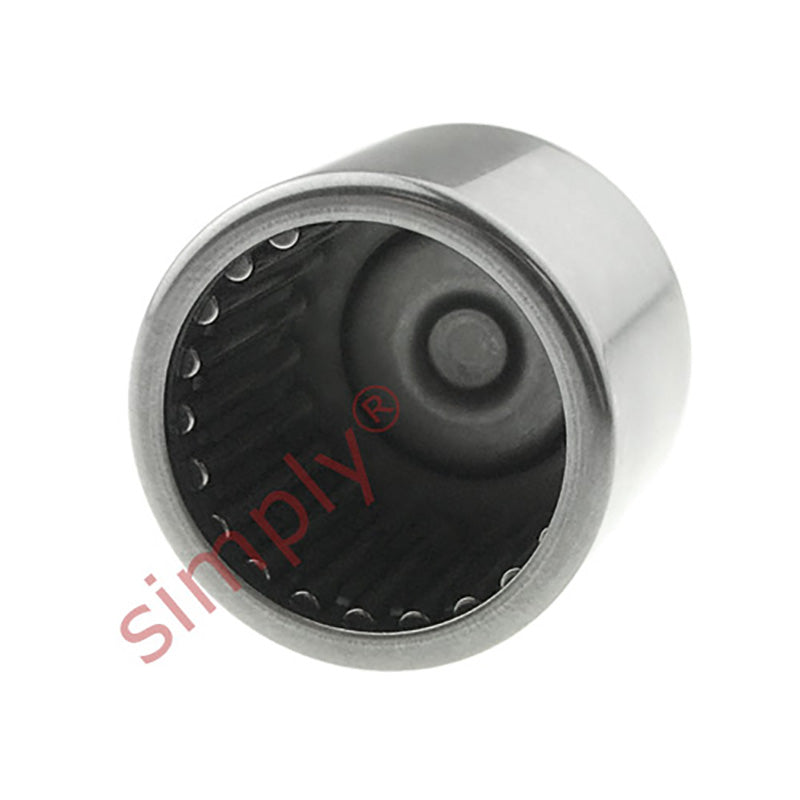

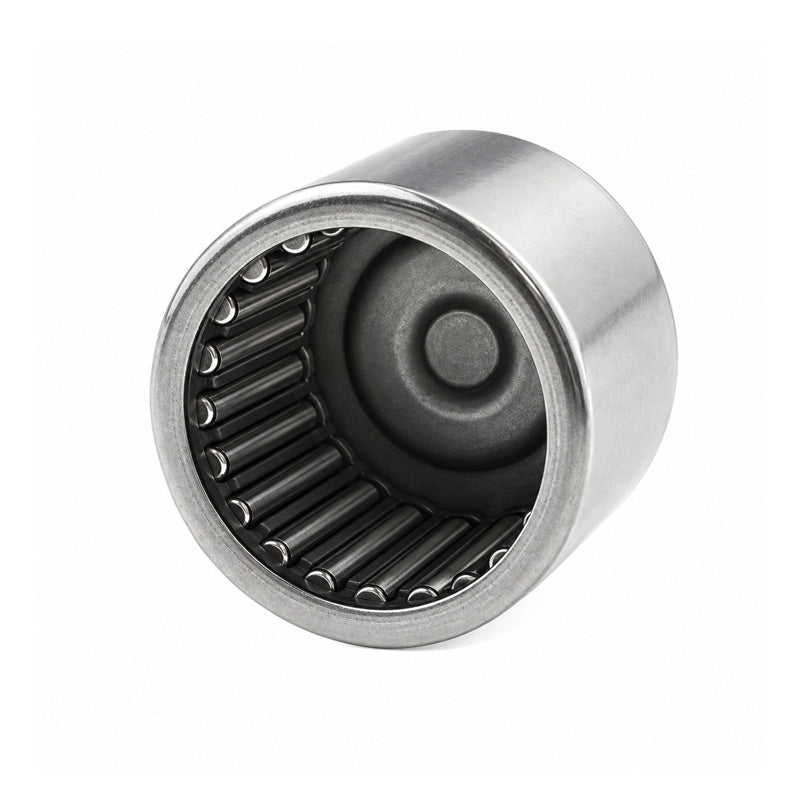

NTN BK1816 Drawn Cup Needle Roller Bearing with Closed End 18x24x16mm
NTN BK1816 Drawn Cup Needle Roller Bearing with Closed End 18x24x16mm
Regular price
€5,76
ex VAT
Regular price
Sale price
€5,76
ex VAT
In stock
Price Break
5+
€5,70
10+
€5,47
20+
€5,36
50+
€5,18
100+
€5,07
500+
€4,78
1000+
€4,03
Couldn't load pickup availability
Share this product
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw - Under rollers diameter | 18mm |
|---|---|
| D - Outside diameter | 24mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR15X18X16.5 |
| Cr - Dynamic load rating | 11.8 kN |
| C0r - Static load rating | 17.3 kN |
| N - Grease lubrication limit speed | 8500 tr/min |
| N - Oil lubrication limit speed | 13000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
