SKU: BK2516-MB

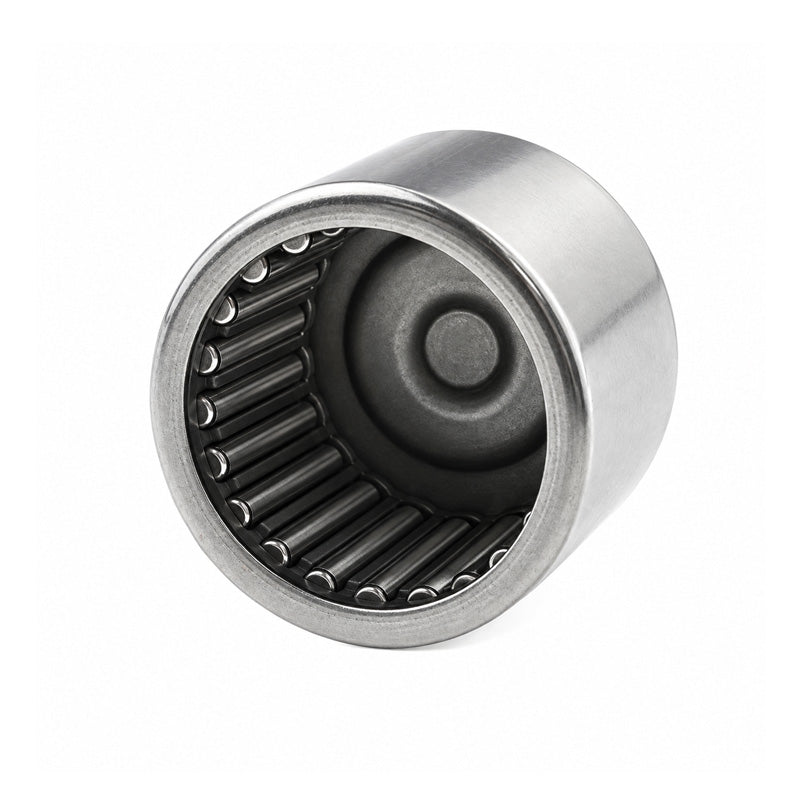

Major Brand BK2516 Drawn Cup Type Needle Roller Bearing with One Closed End25x32x16mm
Major Brand BK2516 Drawn Cup Type Needle Roller Bearing with One Closed End25x32x16mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
10+
€7,32
19+
€6,90
29+
€6,82
39+
€6,74
49+
€6,66
74+
€6,58
99+
€6,17
199+
€6,08
249+
€6,00
499+
€5,92
999+
€5,75
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 16mm |
| Dynamic load | 15.1 N |
| Static load | 24 N |
| Fatigue load limit Pu | 2.85 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 9500 rpm |
| C1 | 16mm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | IR20x25x17 |
| Seal | G25x32x4 |
| Weight | 32 g |
