SKU: BK2538-EU

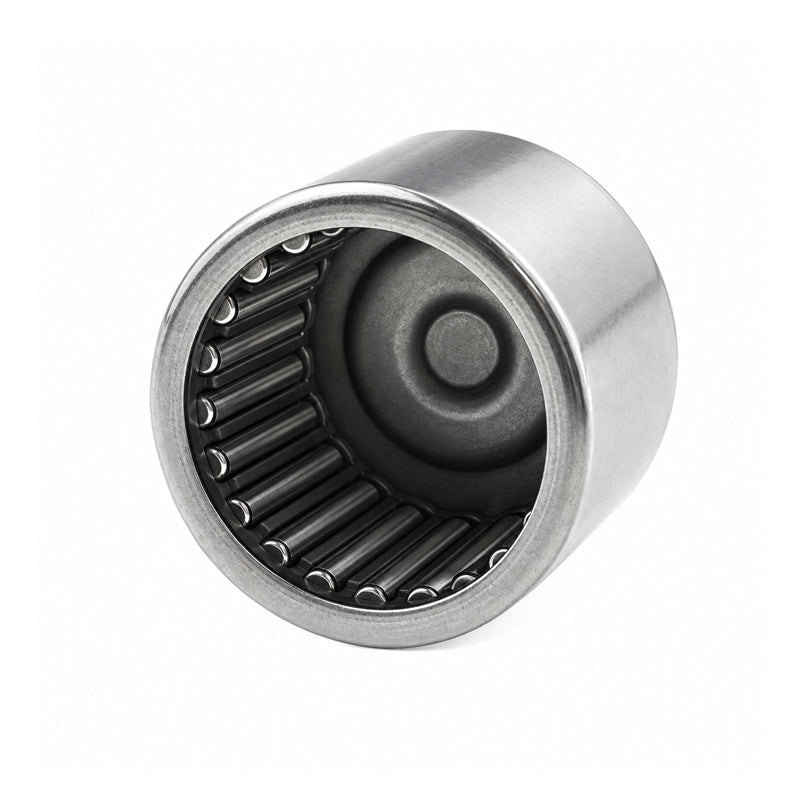

BK2538 Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x38mm
BK2538 Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x38mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
10+
€9,33
19+
€8,81
29+
€8,70
39+
€8,60
49+
€8,49
74+
€8,39
99+
€7,87
199+
€7,76
249+
€7,66
499+
€7,55
999+
€7,34
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 38mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 38mm |
| Dynamic load C | 33000 N |
| Static load Co | 65500 N |
| Fatigue load limit Pu | 8000 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| C1 | 35.3mm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | IR20x25x38.5 |
| Seal | G25x32x4 |
| Weight | 68 g |
