SKU: BK3016-MB

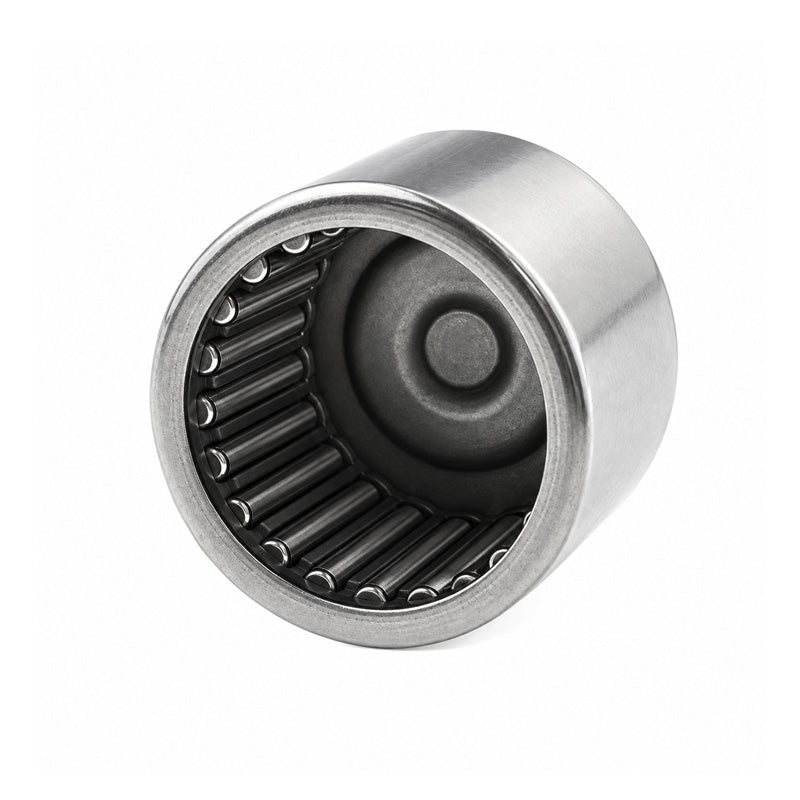

Major Brand BK3016 Drawn Cup Type Needle Roller Bearing with One Closed End 30x37x16mm
Major Brand BK3016 Drawn Cup Type Needle Roller Bearing with One Closed End 30x37x16mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
10+
€7,56
19+
€7,13
29+
€7,05
39+
€6,96
49+
€6,88
74+
€6,79
99+
€6,37
199+
€6,28
249+
€6,20
499+
€6,11
999+
€5,94
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 16mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 37mm |
| C | 16mm |
| Dynamic load | 16500 N |
| Static load | 29000 N |
| Fatigue load limit Pu | 3400 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| C1 | 13.3mm |
| r1r2 min | 0.8mm |
| Da max | 32mm |
| ra max | 0.8mm |
| Inner ring | IR25x30x17 |
| Seal | G/SD30x37x4 |
| Weight | 38 g |
