SKU: BK3016-NTN

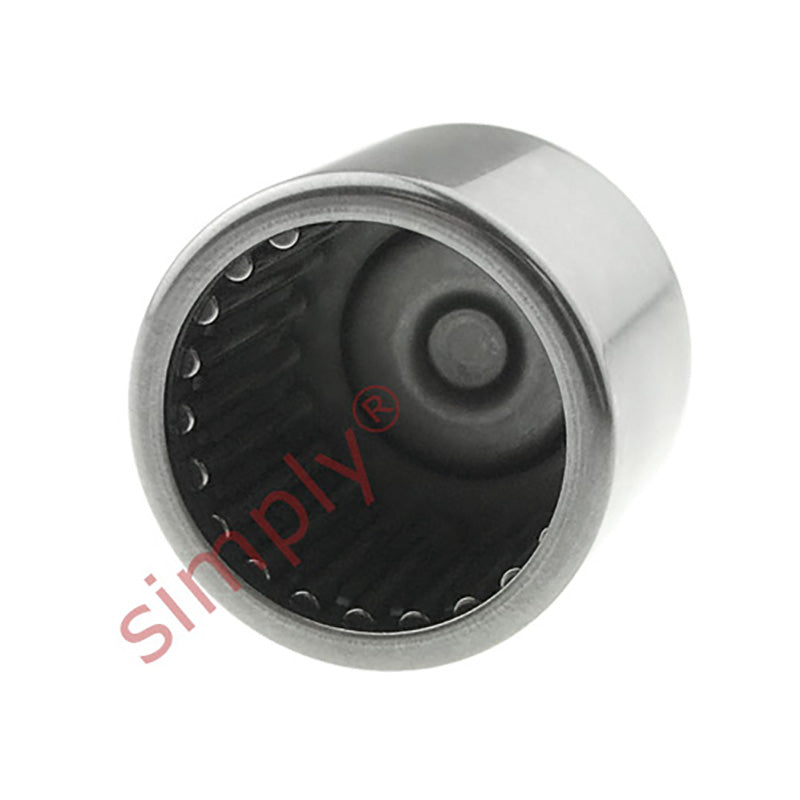

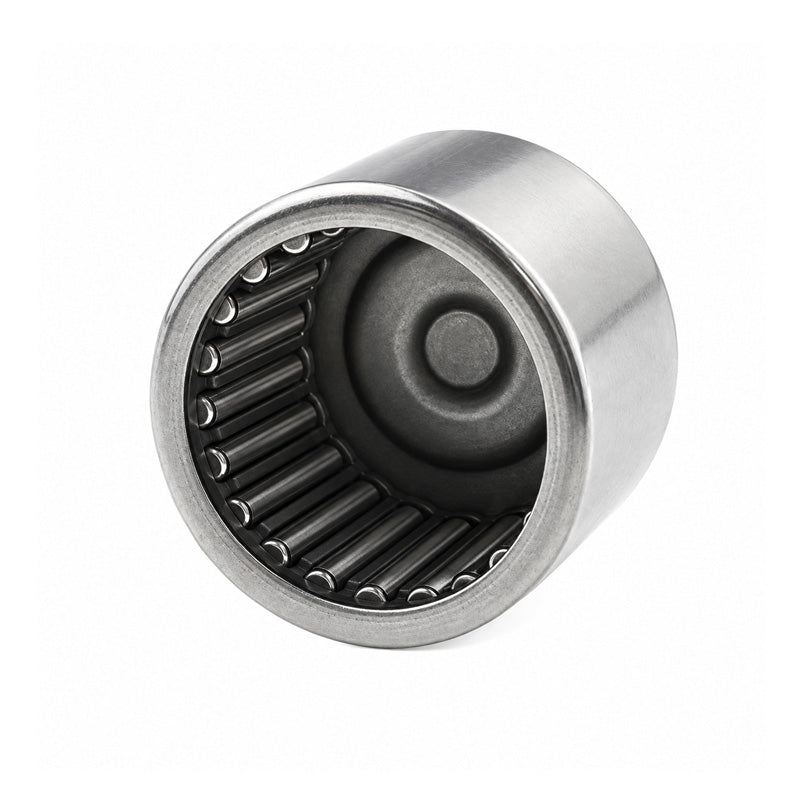

NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm
NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
3+
€9,16
4+
€8,64
9+
€8,54
19+
€8,44
49+
€8,33
99+
€8,23
499+
€7,72
999+
€7,61
1999+
€7,51
2999+
€7,41
4999+
€7,20
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 16mm
Technical
Technical
| Fw - Under rollers diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR25X30X17 |
| Cr - Dynamic load rating | 18.1 kN |
| C0r - Static load rating | 30 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
