SKU: BK3038ZWD-NTN

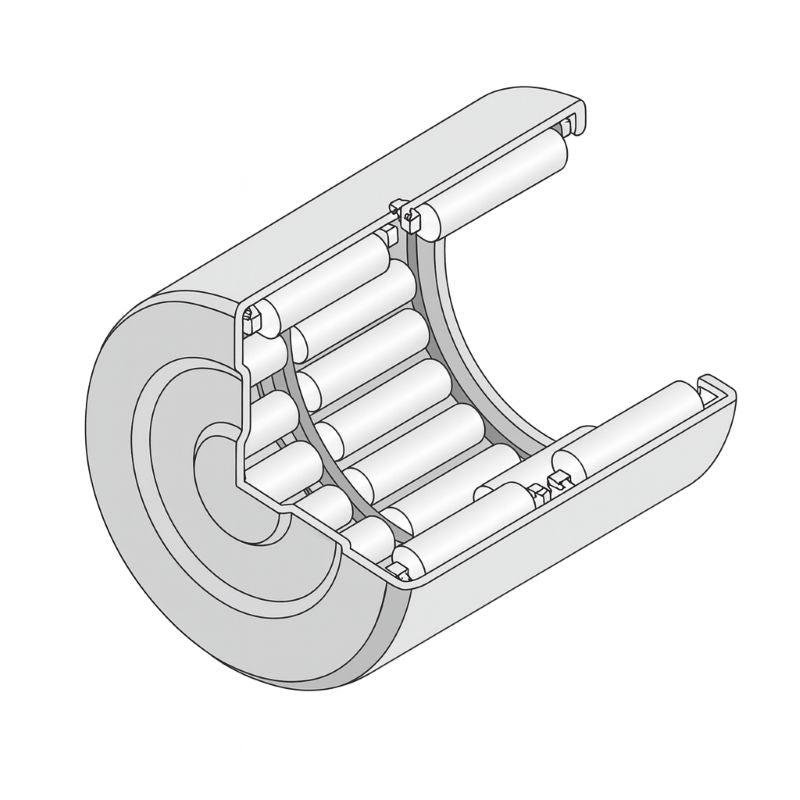

NTN BK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 30x37x38mm - Allow 2-3 Days

NTN BK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 30x37x38mm - Allow 2-3 Days
Regular price €9,95 ex VAT
Regular price Sale price €9,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,65
4+ €7,34
9+ €7,19
19+ €6,96
49+ €6,80
99+ €6,42
499+ €5,41
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 30mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 38mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR25X30X38.5
Cr - Dynamic load rating 38.5 kN
C0r - Static load rating 78.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
