SKU: C-UCF310D1-NTN

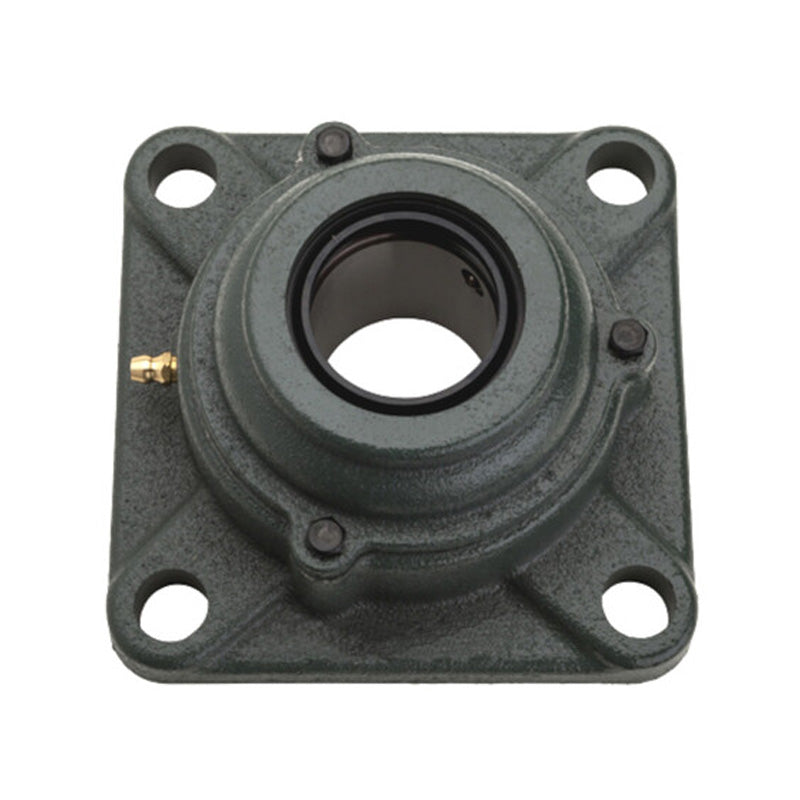

NTN C-UCF310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€207,95
ex VAT
Regular price
Sale price
€207,95
ex VAT
In stock
Price Break
3+
€175,58
4+
€168,48
9+
€164,94
19+
€159,62
49+
€156,07
99+
€147,20
499+
€124,15
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCF
- Bolt Hole Centres:
- 132mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| L | 175mm |
| J | 132mm |
| A<sub>2</sub> | 28mm |
| A<sub>1</sub> | 19mm |
| A | 48mm |
| N | 23mm |
| B | 61mm |
| S | 22mm |
| A<sub>5</sub> | 88mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 68.5 kN |
| Static load C<sub>0r</sub> | 38.5 kN |
| Fatigue load limit C<sub>u</sub> | 2.99 kN |
| --- | Unit information |
| Mass | 5.8 kg |
