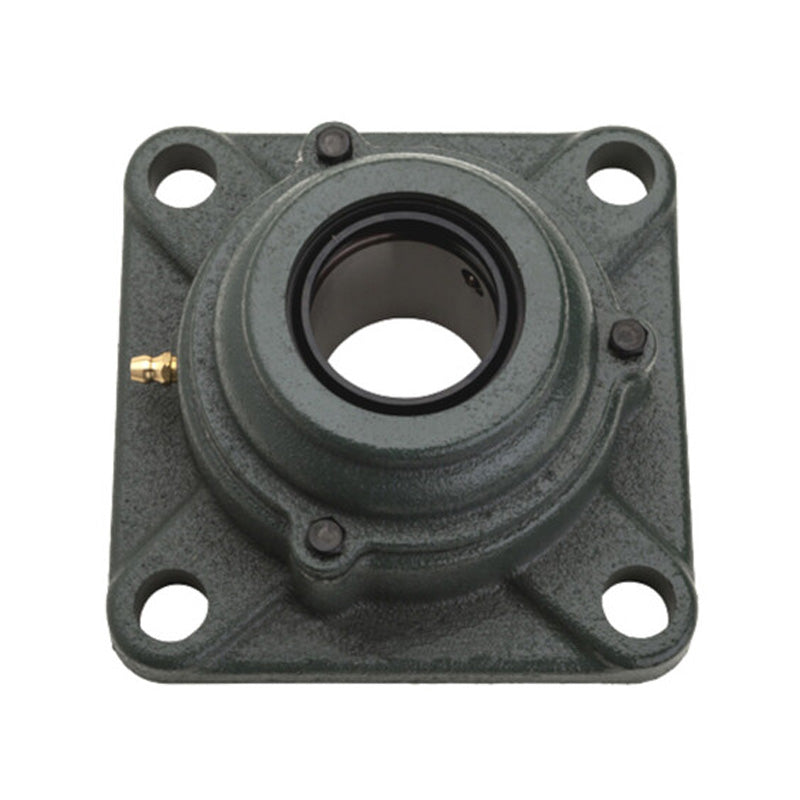

NTN C-UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€310,95
ex VAT
Regular price
Sale price
€310,95
ex VAT
In stock
Price Break
3+
€263,36
4+
€252,72
9+
€247,40
19+
€239,42
49+
€234,10
99+
€220,80
499+
€186,21
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCF
- Bolt Hole Centres:
- 178mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| L | 226mm |
| J | 178mm |
| A<sub>2</sub> | 36mm |
| A<sub>1</sub> | 25mm |
| A | 61mm |
| N | 25mm |
| B | 78mm |
| S | 33mm |
| A<sub>5</sub> | 106mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 115 kN |
| Static load C<sub>0r</sub> | 68 kN |
| Fatigue load limit C<sub>u</sub> | 5.1 kN |
| --- | Unit information |
| Mass | 11 kg |
