SKU: C-UCP212D1-NTN

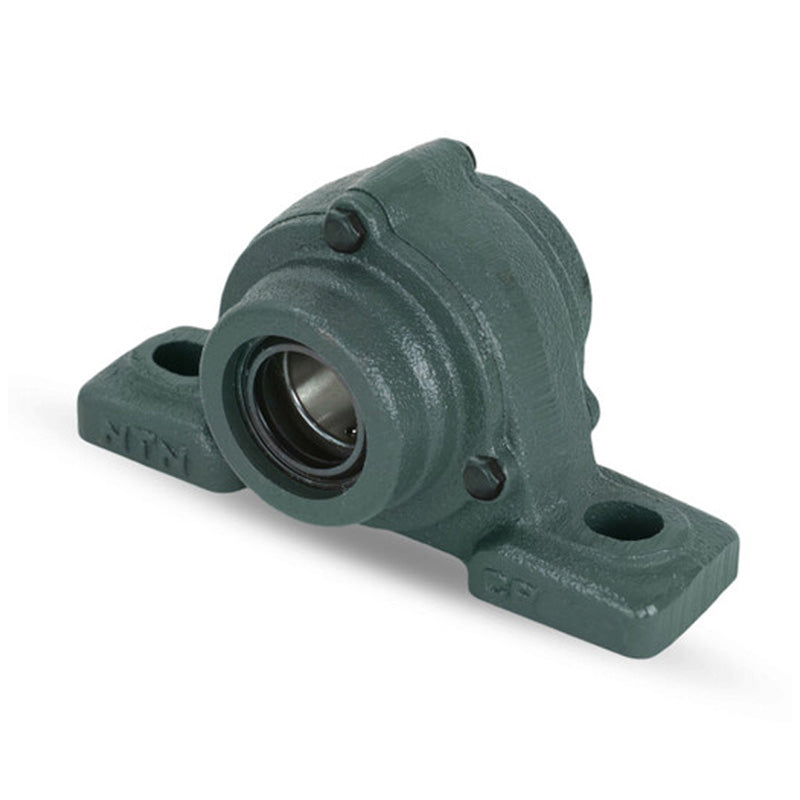

NTN C-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€112,41
ex VAT
Regular price
Sale price
€112,41
ex VAT
In stock
Price Break
10+
€100,04
19+
€94,42
29+
€93,30
39+
€92,18
49+
€91,05
74+
€89,93
99+
€84,31
199+
€83,18
249+
€82,06
499+
€80,94
999+
€78,69
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical

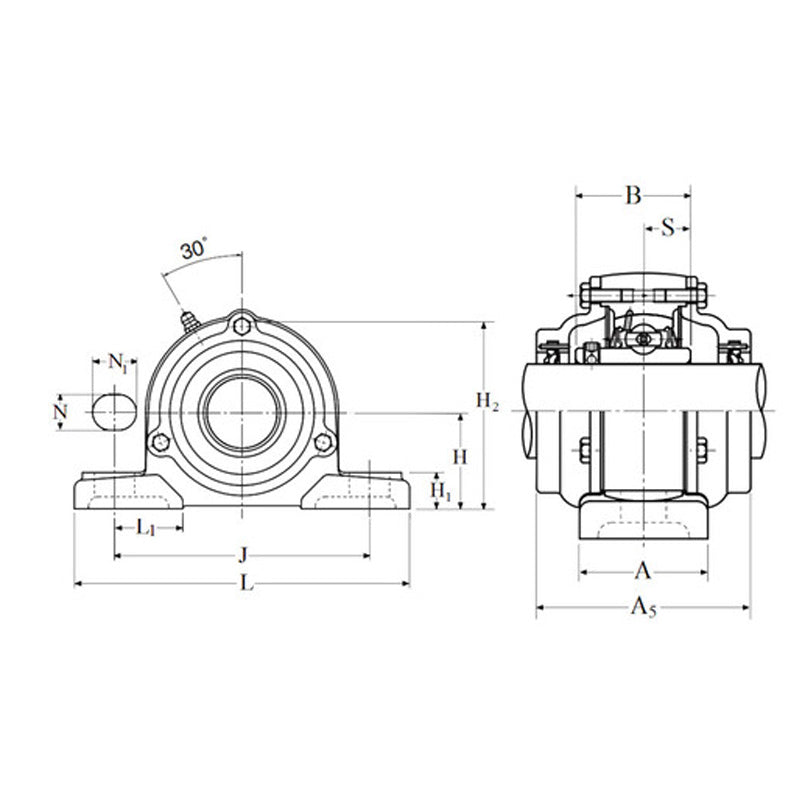

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| H | 69.8mm |
| L | 241mm |
| J | 184mm |
| A | 70mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 25mm |
| H<sub>2</sub> | 138mm |
| L<sub>1</sub> | 70mm |
| B | 65.1mm |
| S | 25.4mm |
| H<sub>3</sub> | 143mm |
| A<sub>5</sub> | 115mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 6 kg |
