SKU: CCNB-32-SB

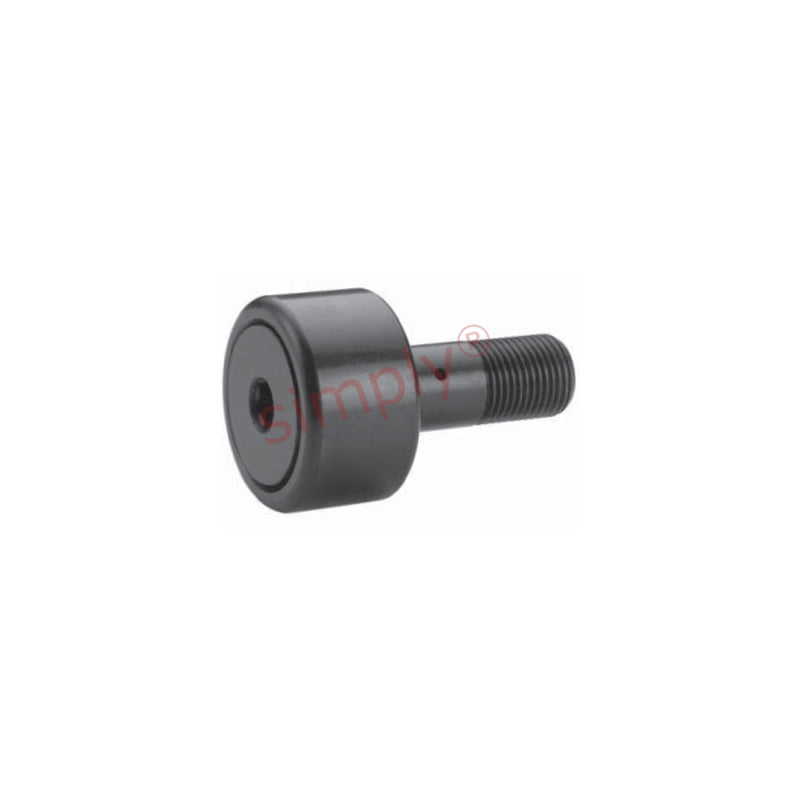

Major Brand CCNB32SB Hex Head Sealed Crowned Cam Follower with 1 inch Outside Diameter
Major Brand CCNB32SB Hex Head Sealed Crowned Cam Follower with 1 inch Outside Diameter
Regular price
€33,95
ex VAT
Regular price
Sale price
€33,95
ex VAT
Equivalent to: CCF-1-SB CS-32-LW CR-1-XBC CRSBC-16
In stock
Price Break
3+
€25,72
4+
€24,28
9+
€23,99
19+
€23,70
29+
€23,41
39+
€23,12
49+
€21,68
59+
€21,39
249+
€21,10
499+
€20,81
999+
€20,23
Description
Description
|
Cam Follower with Hex Head and Crowned O.D: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear, and aids reliability. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, ease of installing with a hex wrench. |
Equivalent: CCF-1-SB CS-32-LW CR-1-XBC CRSBC-16
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Pitch:
- UNF 7/16-20
Technical
Technical
| A | 1 inch |
|---|---|
| B | 0.625 inch |
| C | 0.4375 inch |
| D | 1 inch |
| E | 0.5 inch |
| Thread class 2A F | 7/16-20 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 41/64 inch |
| Recommended bore | 0.4375 inch |
| Recommended torque | 250 lbf-in |
| Max static capacity | 3060 lbs |
| Basic dynamic rating | 2225 lbs |
