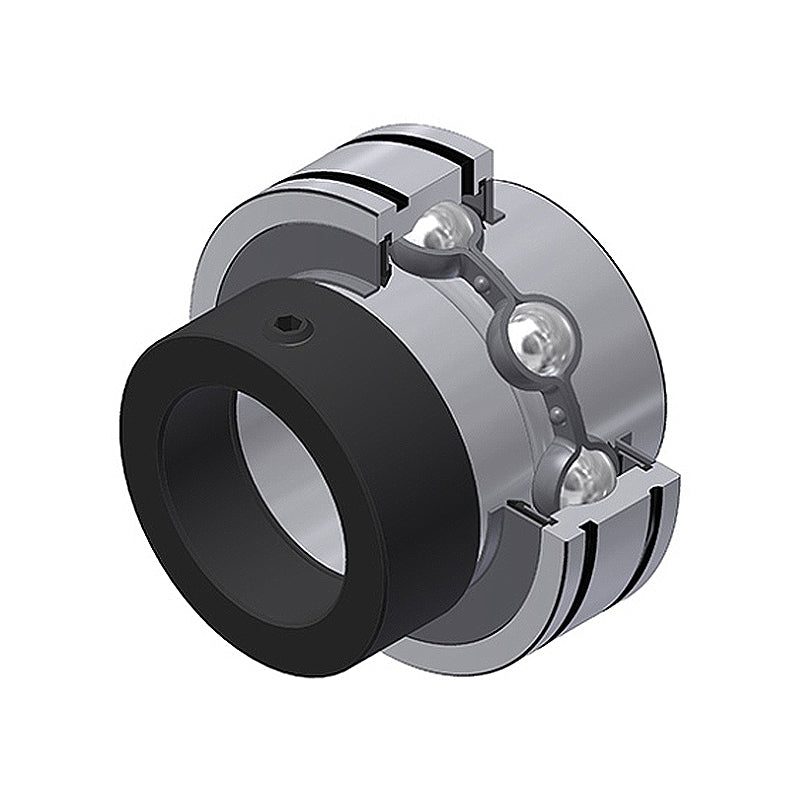

SNR CEX209-26 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR CEX Full Width Parallel Outer Bearing Insert with Eccentric Collar: This bearing insert is engineered for applications needing axial fixation without relubrication, and it is not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and features a wide inner ring design. Each steel insert is equipped with a single lip seal and slinger on both sides, and a zinc-coated sheet steel retainer over-molded with NBR. The axially preloaded seal lip and preconnected, zinc-coated sheet steel slinger offer enhanced protection against mechanical impacts and particles. This insert is ideal for medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered

Brand / Quality:

SNR - High Quality

Thread Size:

5/16-24UNF

Inside Diameter:

41.275mm = 1.625 (1-5/8) inch

Outside Diameter:

85mm

Width:

56.3mm

Style:

CEX
