SKU: CF.10.BUURM

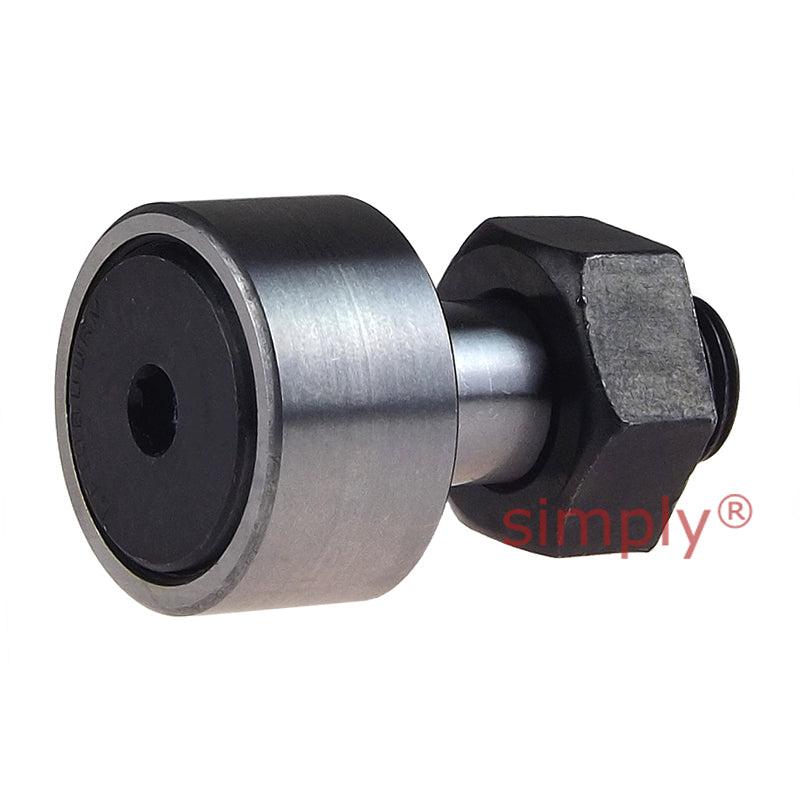

IKO CF10BUURM Hex Head Lip Sealed Crowned Cam Follower 22x12x10mm M10x1 Thread
IKO CF10BUURM Hex Head Lip Sealed Crowned Cam Follower 22x12x10mm M10x1 Thread
Regular price
€27,95
ex VAT
Regular price
Sale price
€27,95
ex VAT
Equivalent to: KR16PPSK
In stock
Price Break
10+
€20,97
19+
€19,79
29+
€19,56
39+
€19,32
49+
€19,09
74+
€18,85
99+
€17,67
199+
€17,44
249+
€17,20
499+
€16,96
999+
€16,49
Description
Description
|
Standard Type Cam Follower with Hexagonal Socket: This cam follower is made from high carbon steel and has a hexagonal socket and a crowned outer ring. This cam follower has seals in the narrow clearances to prevent the penetration of foreign particles. The crowned outer ring is effective in moderating the edge load due to mounting errors. Benefits: Effective in moderating the edge load due to mounting errors, seals in the narrow clearances prevent the penetration of foreign particles. |
Equivalent: KR16PPSK
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 22mm
- Width:
- 12mm
- Pitch:
- M10x1

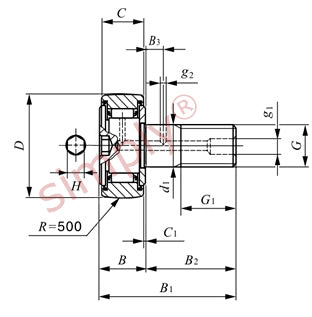

Technical
Technical
| D | 22mm |
|---|---|
| C | 12mm |
| d1 (Stud Diameter) | 10mm |
| G | M10x1mm |
| G1 | 12mm |
| B | 13.2mm max |
| B1 | 36.2mm max |
| B2 | 23mm |
| C1 | 0.6mm |
| H | 4mm |
| rs min | 0.3mm |
| Mounting dimension f min | 16mm |
| Maximum tightening torque | 13.8 N-m |
| Dynamic load C | 5430 N |
| Static load Co | 6890 N |
| Maximum allowable static load | 6890 N |
