SKU: CM-UCFC206D1-NTN

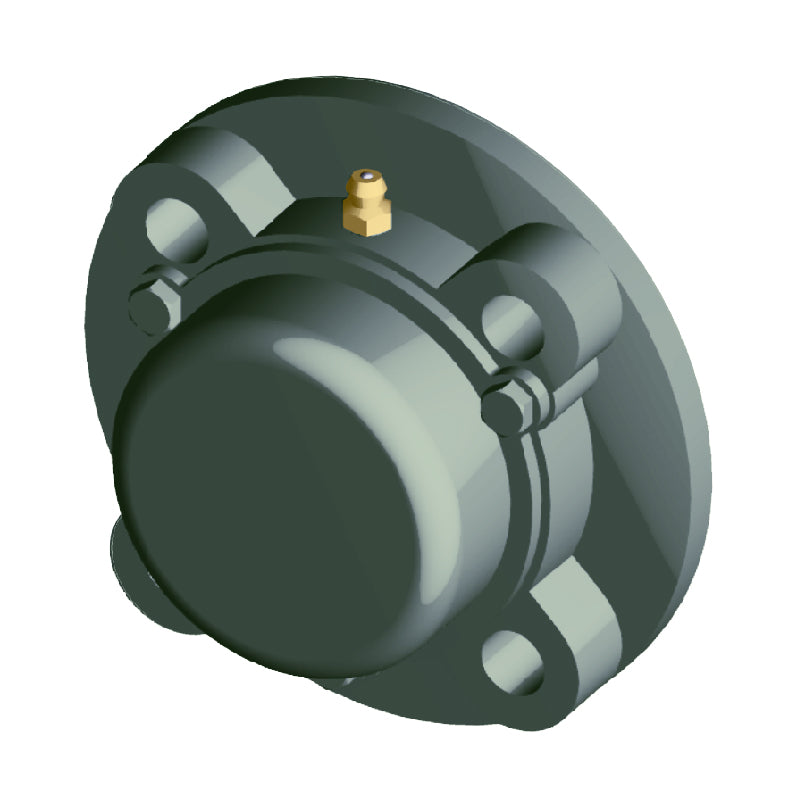

NTN CM-UCFC206D1 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFC206D1 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
3+
€43,87
4+
€42,09
9+
€41,21
19+
€39,88
49+
€38,99
99+
€36,78
499+
€31,02
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 70.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| L | 125mm |
| J | 100mm |
| (J<sub>1</sub>) | 70.7mm |
| A<sub>2</sub> | 10mm |
| N | 12mm |
| A<sub>3</sub> | 8mm |
| A<sub>1C</sub> | 24.5mm |
| A | 31mm |
| H<sub>3</sub> | 80mm |
| B | 38.1mm |
| S | 15.9mm |
| t<sub>2</sub> | 11mm |
| A<sub>5</sub> | 56mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.6 kg |
