SKU: CM-UCFL214D1-NTN

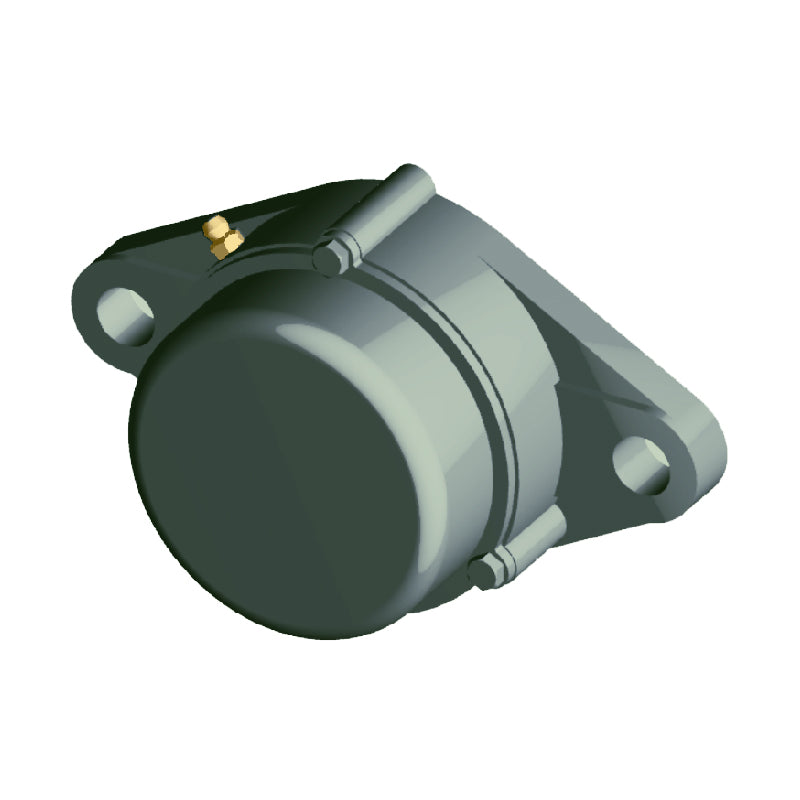

NTN CM-UCFL214D1 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL214D1 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€233,95
ex VAT
Regular price
Sale price
€233,95
ex VAT
In stock
Price Break
3+
€197,44
4+
€189,46
9+
€185,47
19+
€179,49
49+
€175,50
99+
€165,53
499+
€139,60
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| H | 265mm |
| J | 216mm |
| A<sub>2</sub> | 31mm |
| A<sub>1</sub> | 22mm |
| A | 54mm |
| N | 23mm |
| L | 160mm |
| B | 74.6mm |
| S | 30.2mm |
| t<sub>2</sub> | 16mm |
| A<sub>5</sub> | 98mm |
| L<sub>1</sub> | 164mm |
| L<sub>2</sub> | 80mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 7.7 kg |
