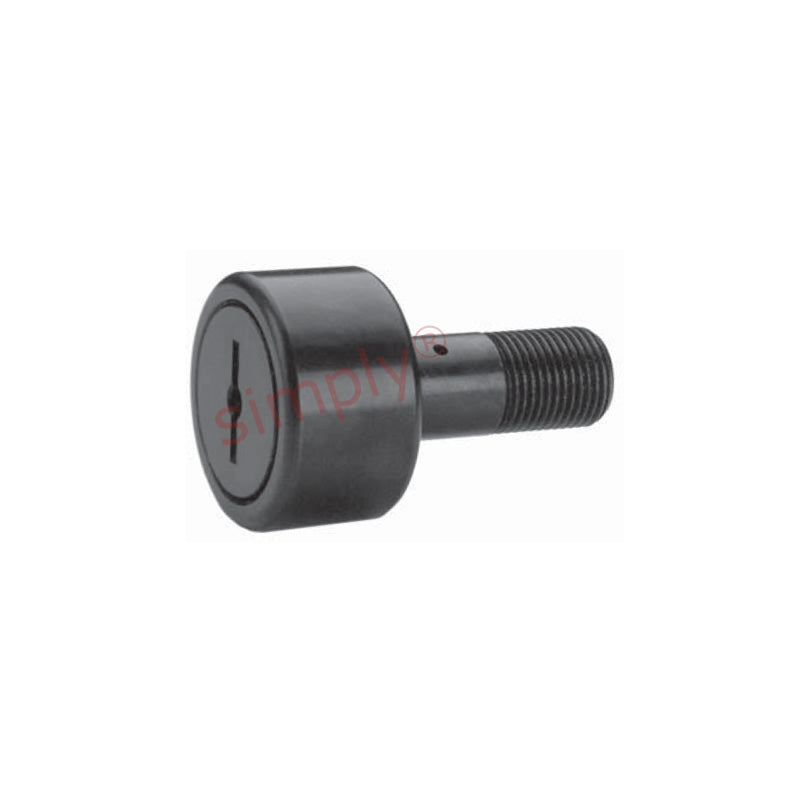

Major Brand CNB16 Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
Major Brand CNB16 Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
Regular price
€23,95
ex VAT
Regular price
Sale price
€23,95
ex VAT
Equivalent to: CF-1/2 S-16 CR-1/2 CR-8-1
In stock
Price Break
3+
€17,65
4+
€16,66
9+
€16,46
19+
€16,26
29+
€16,06
39+
€15,86
49+
€14,87
59+
€14,67
249+
€14,48
499+
€14,28
999+
€13,88
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-1/2 S-16 CR-1/2 CR-8-1
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Pitch:
- UNF 10-32
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.375 inch |
| C | 0.19 inch |
| D | 0.625 inch |
| E | 0.25 inch |
| Thread class 2A F | 10-32 UNF |
| J | 1/8 inch |
| Min boss diameter | 19/64 inch |
| Recommended bore | 0.19 inch |
| Recommended torque | 15 lbf-in |
| Max static capacity | 1085 lbs |
| Basic dynamic rating | 930 lbs |
