SKU: CNB-20-NS

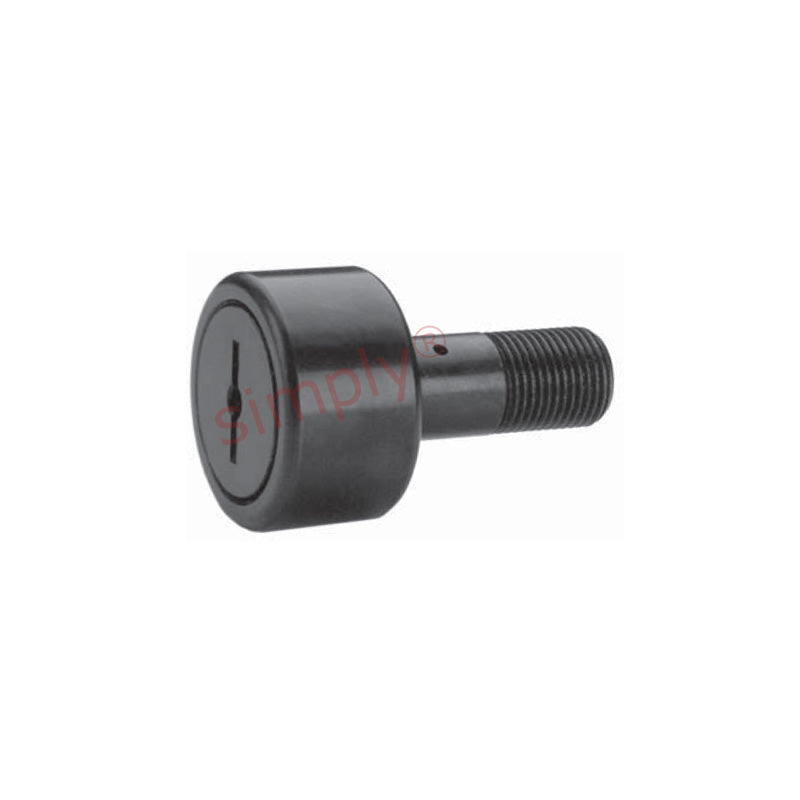

Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
Regular price
€20,95
ex VAT
Regular price
Sale price
€20,95
ex VAT
Equivalent to: CF-5/8-NS CR-5/8A-X CRS-10
In stock
Price Break
3+
€15,74
4+
€14,85
9+
€14,67
19+
€14,50
29+
€14,32
39+
€14,14
49+
€13,26
59+
€13,08
249+
€12,91
499+
€12,73
999+
€12,38
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-5/8-NS CR-5/8A-X CRS-10
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 10.32mm = 0.406 (13/32) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.625 inch |
|---|---|
| B | 0.406 inch |
| C | 0.25 inch |
| D | 0.625 inch |
| E | 0.312 inch |
| Thread class 2A F | 1/4-28 UNF |
| J | 1/8 inch |
| Min boss diameter | 23/64 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1215 lbs |
| Basic dynamic rating | 995 lbs |
