SKU: CNB-24

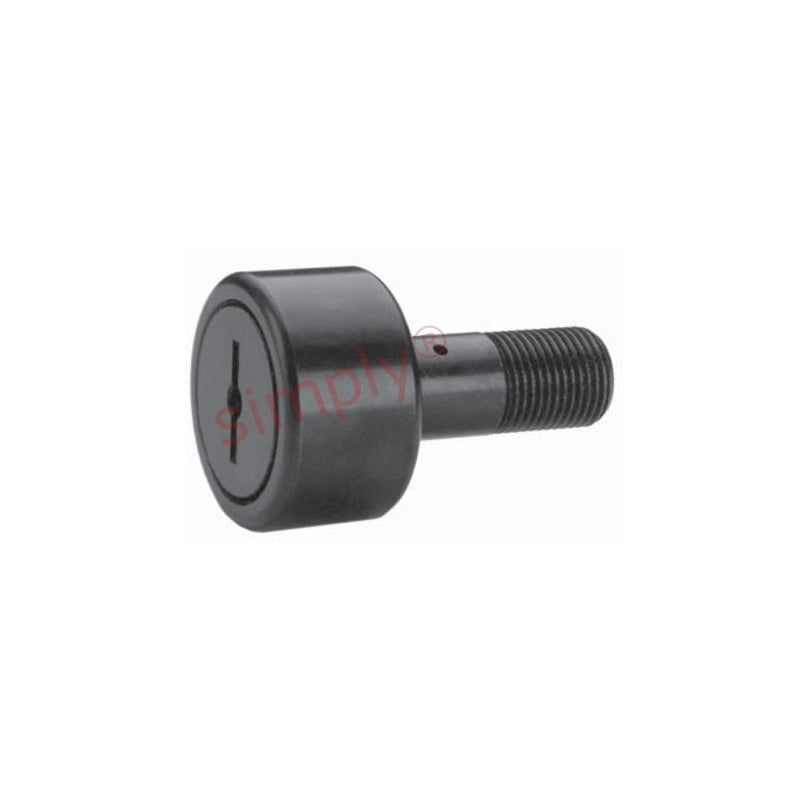

Major Brand CNB24 Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
Major Brand CNB24 Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
Regular price
€29,95
ex VAT
Regular price
Sale price
€29,95
ex VAT
Equivalent to: CF-3/4 S-24 CR-3/4 CR-12
In stock
Price Break
3+
€22,70
4+
€21,42
9+
€21,17
19+
€20,91
29+
€20,66
39+
€20,40
49+
€19,13
59+
€18,87
249+
€18,62
499+
€18,36
999+
€17,85
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-3/4 S-24 CR-3/4 CR-12
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
- Pitch:
- UNF 3/8-24
Technical
Technical
| A | 0.75 inch |
|---|---|
| B | 0.5 inch |
| C | 0.375 inch |
| D | 0.875 inch |
| E | 0.375 inch |
| Thread class 2A F | 3/8-24 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 1/2 inch |
| Recommended bore | 0.375 inch |
| Recommended torque | 95 lbf-in |
| Max static capacity | 2065 lbs |
| Basic dynamic rating | 1660 lbs |
